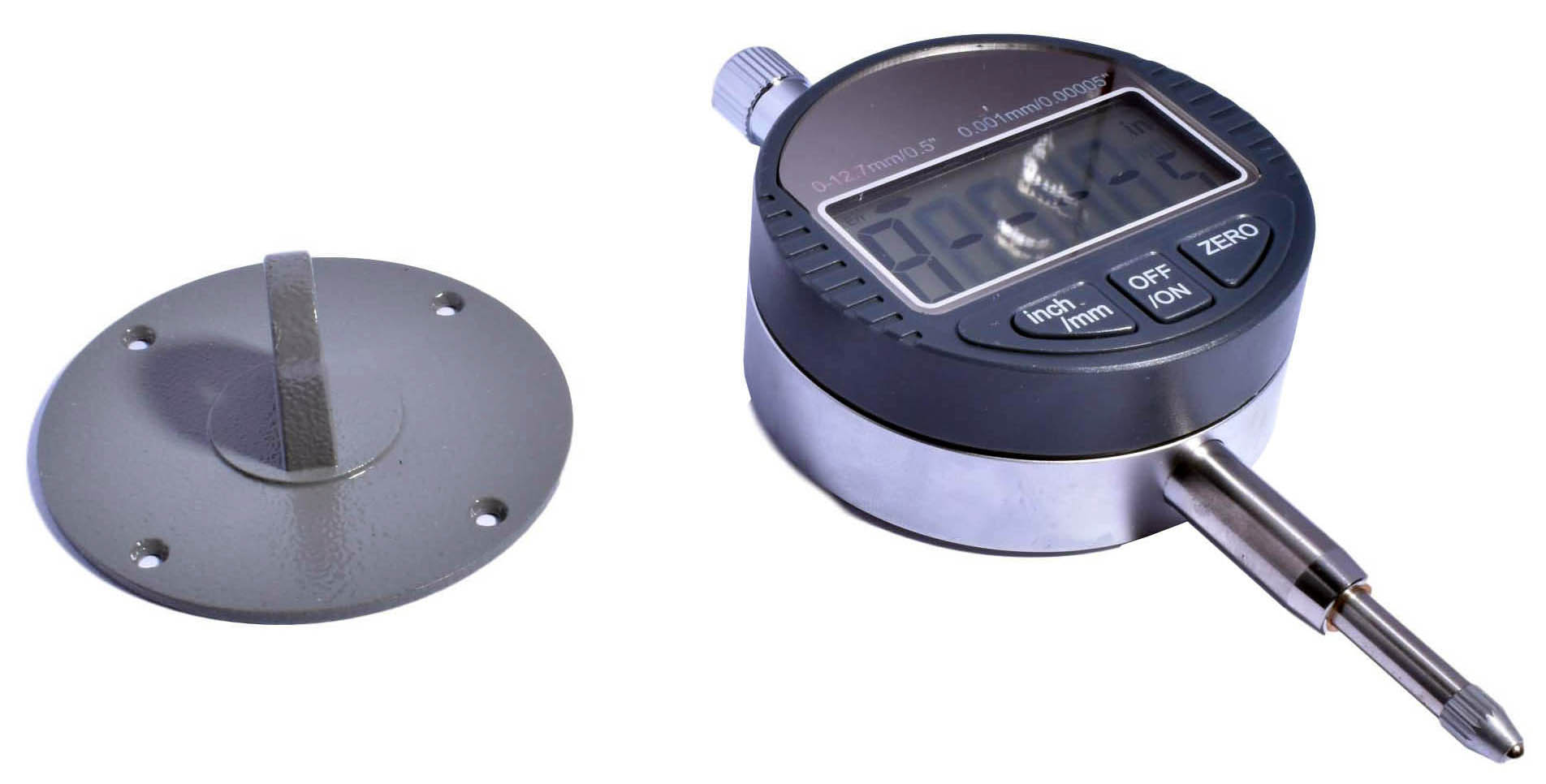

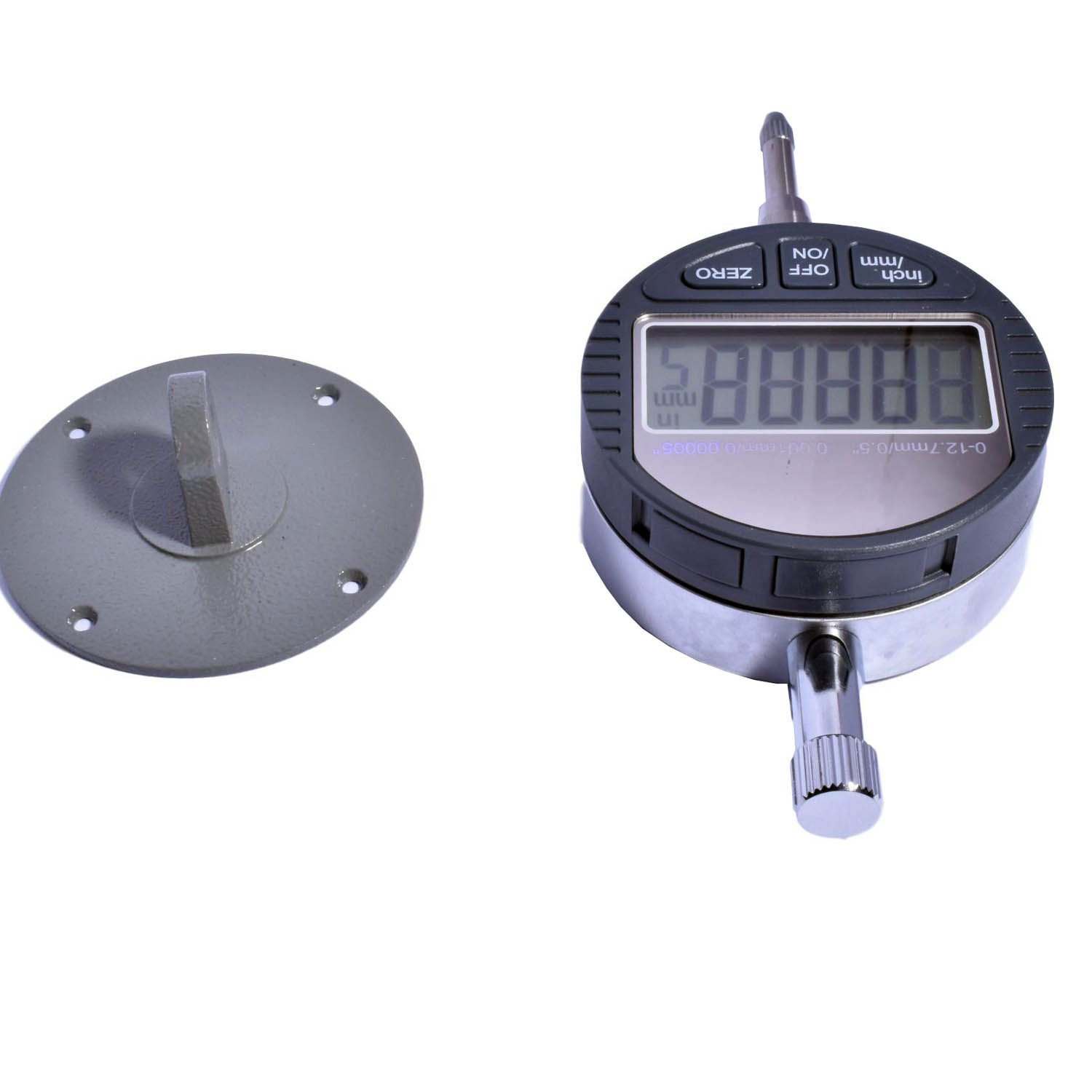

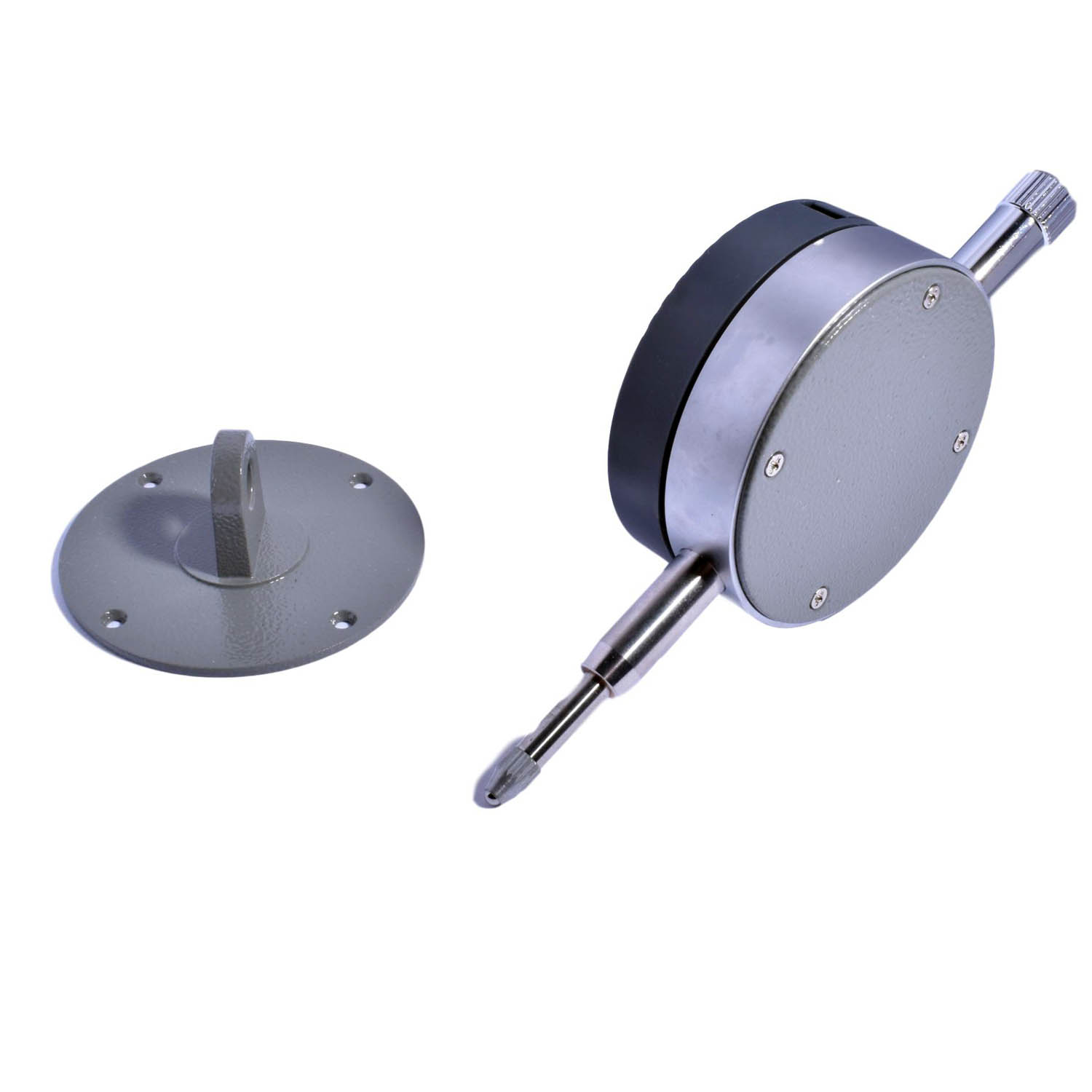

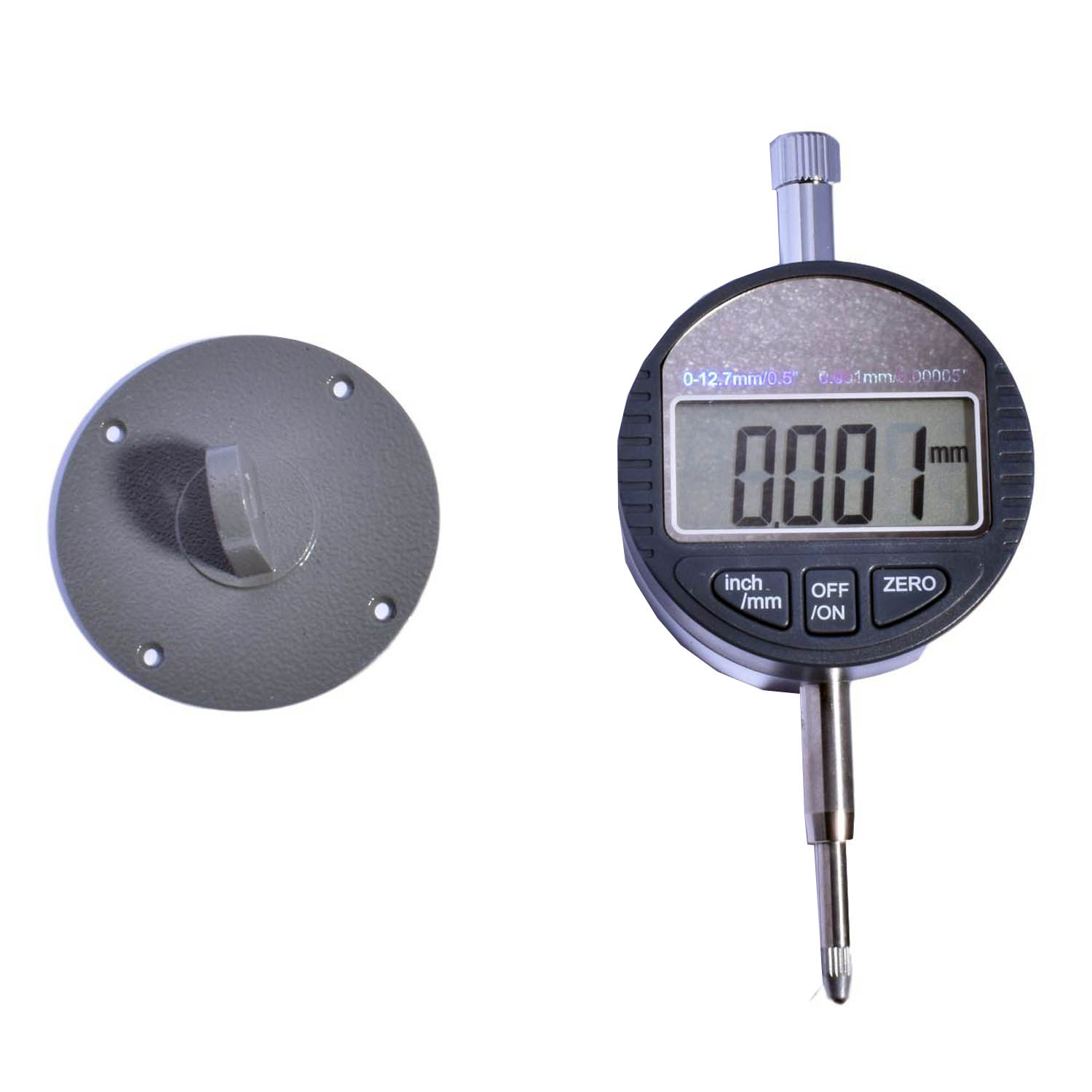

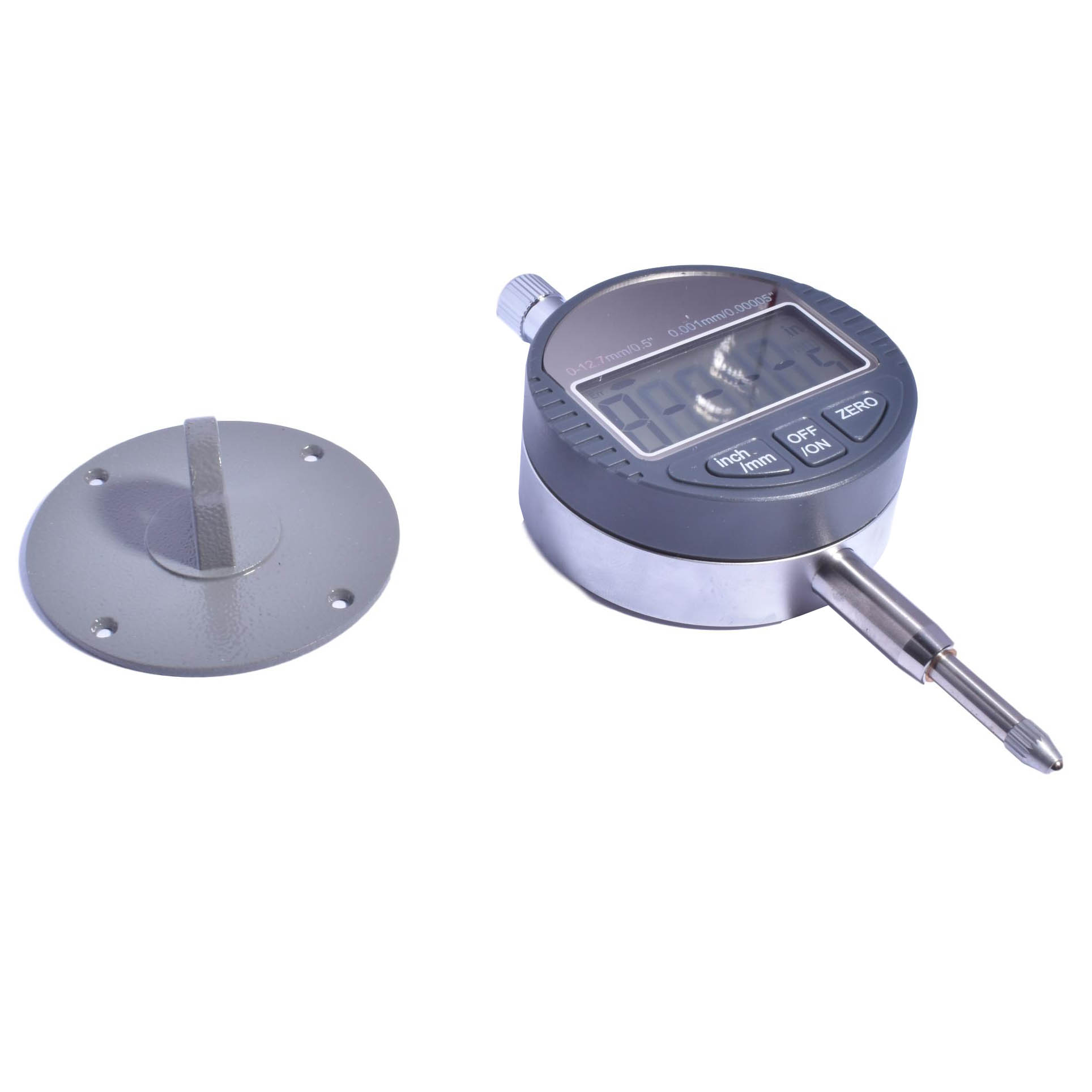

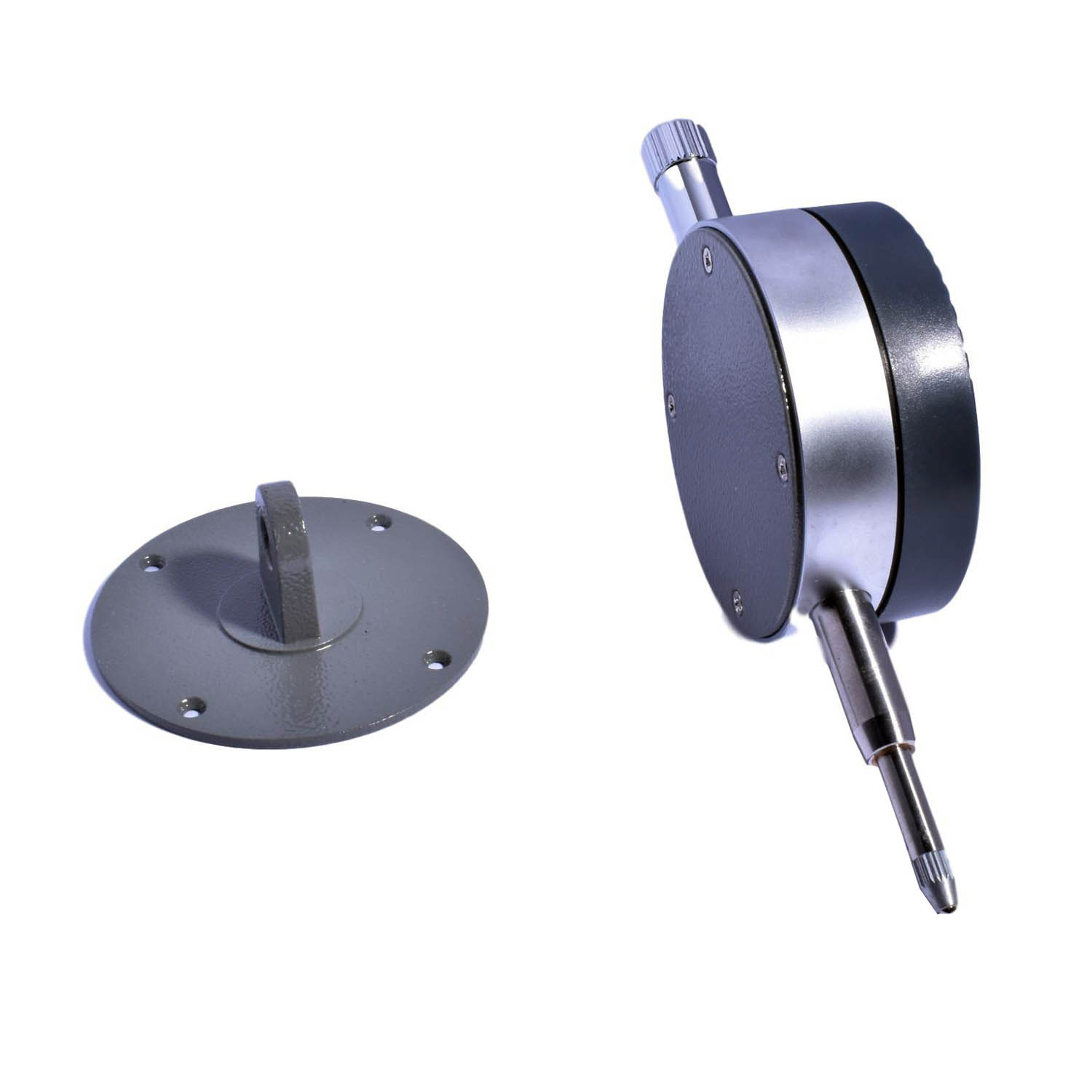

0.5″ DIGITAL TEST INDICATOR 0.00005″
| MODEL | TEST INDICATOR | MATERIAL | plastic and aluminum |
| MEASURE RANGE | 0-0.5″ /0-12.7mm | MAXIMUM MEASURE | 0.5″/12.7mm |
| RESOLUSION | 0.001mm/0.00005″ | MINIMUM MEASURE | 0 |
| BRAND | iCarbide USA | SPC OUTPUT | YES |
Measuring range : 0-0.5″ /12.7 mm
Resolution : 0.00005″/0.001mm
Measuring system: Capacitive
Display: LCD (11mm high)
Battery:3V (comes with a battery
Top Shank: 9mm
Head shank:8mm X 4.5mm
Back holder hole:1/4″
Press on/off function/inch&metric switch
Zero press reposition
Hardness Measuring head
| NO | MEASURE SIZE | TOLERANCE/PRECISION |
| NO1 | 0-0.5″/12.7mm | 0.001mm/0.00005 |
The digital display instrument is an instrument with an analog-to- converter and displays the value of the measured variable in decimal digital form. It is matched with various sensors and dispensers and can display various parameters. The dial test indicator instrument has the advantages of high precision, complete functions, fast speed, strong anti-interference ability, small size, low power consumption, intuitive reading, and can input the measurement results into the computer, thereby realizing the automation of the production process.
