Characters & Features
Use:

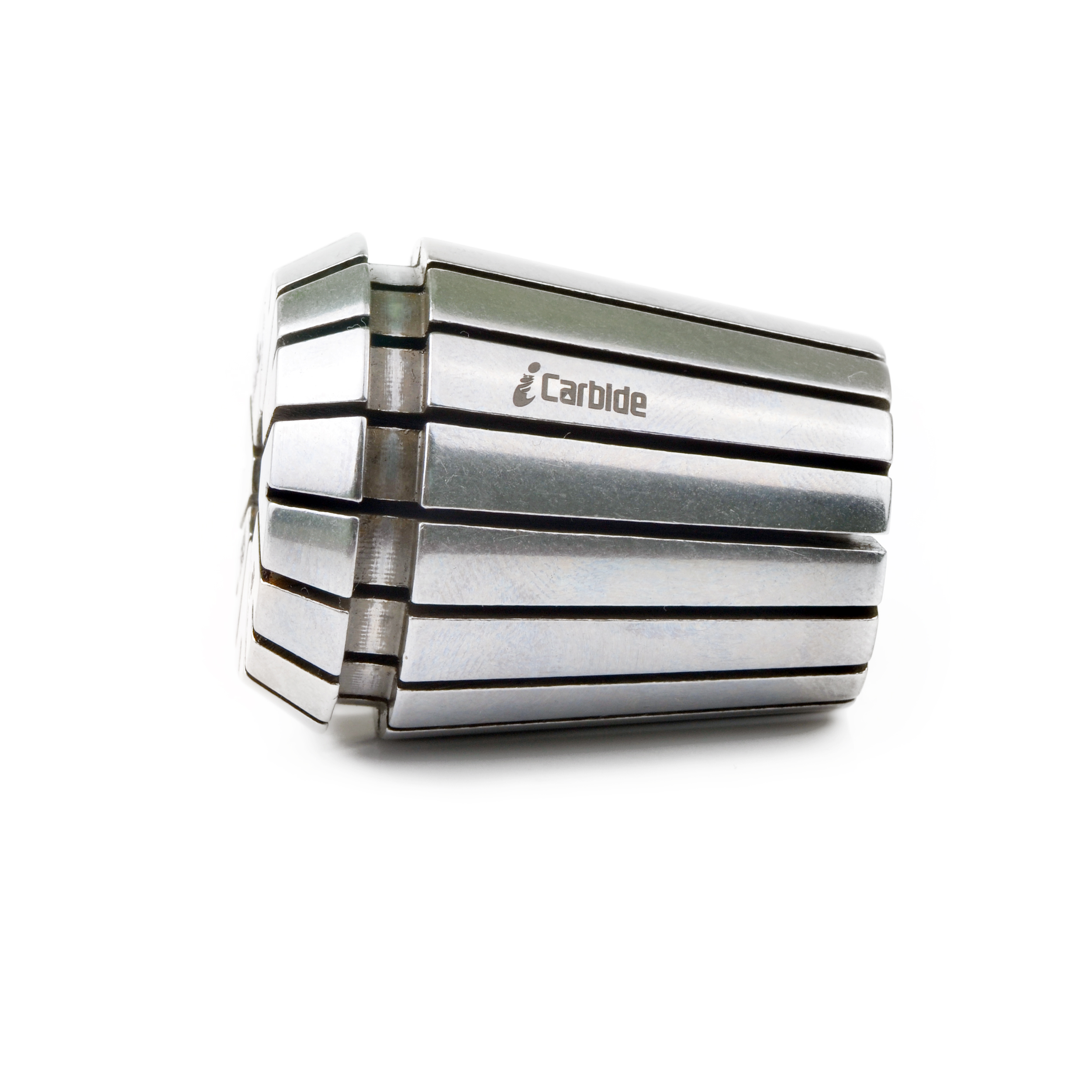

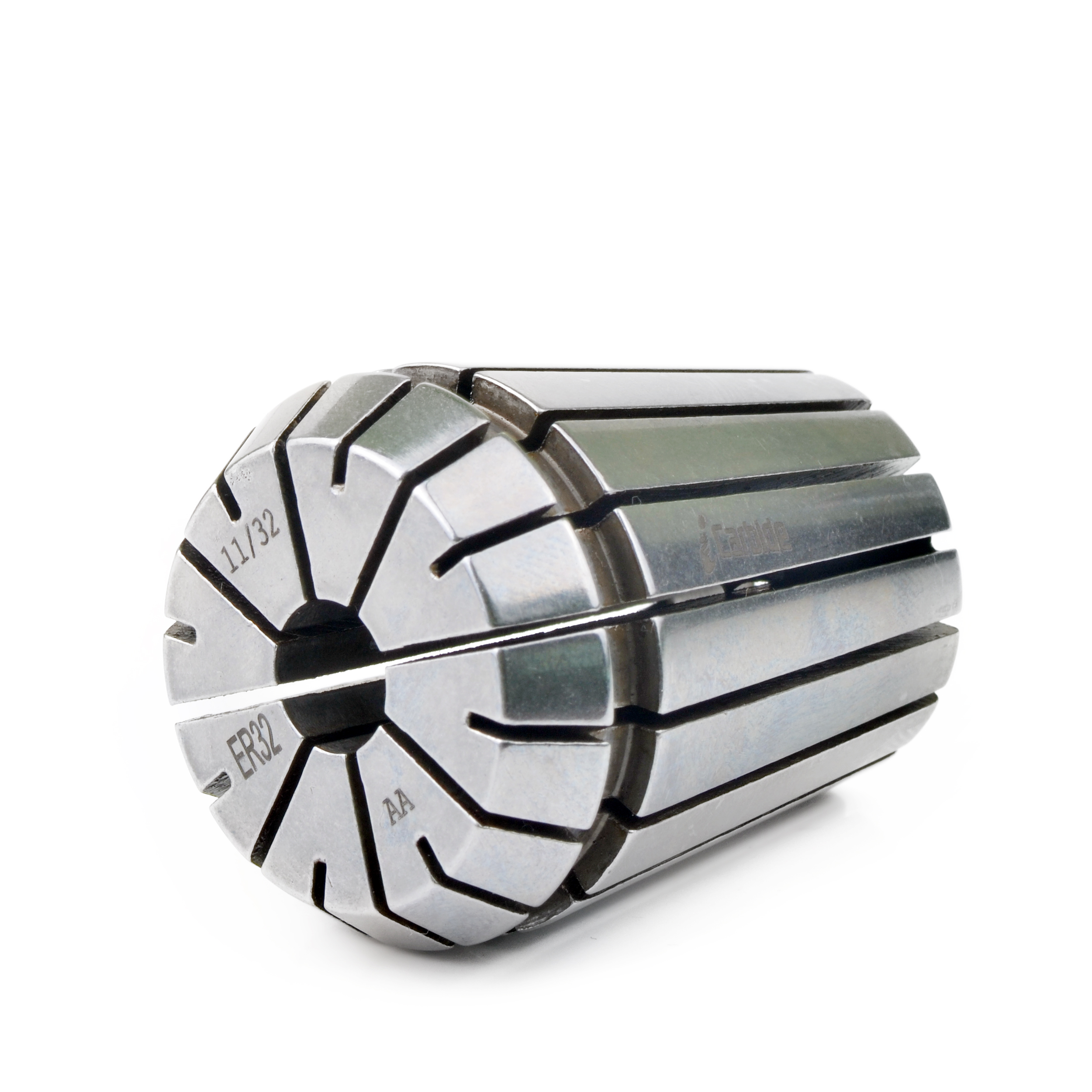

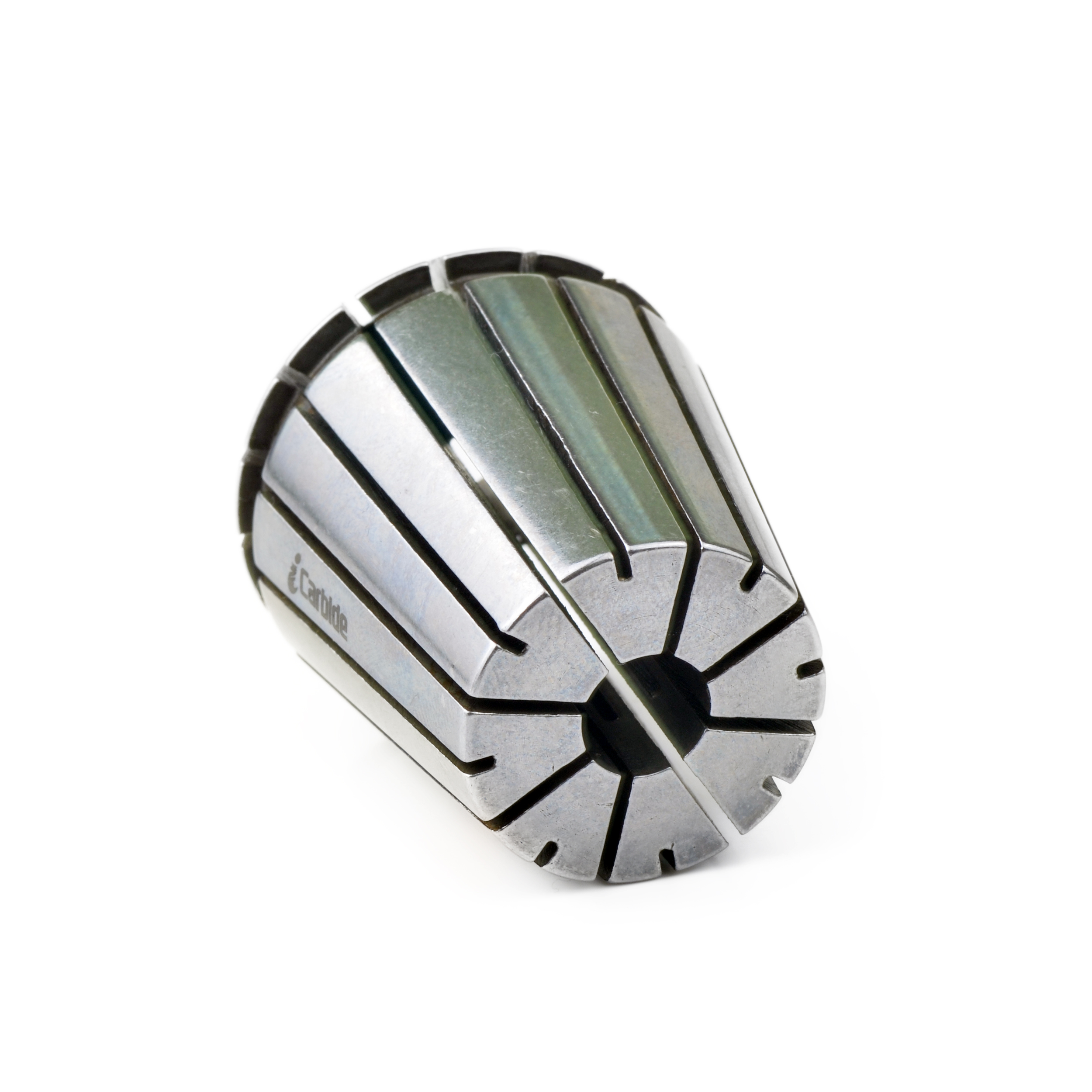

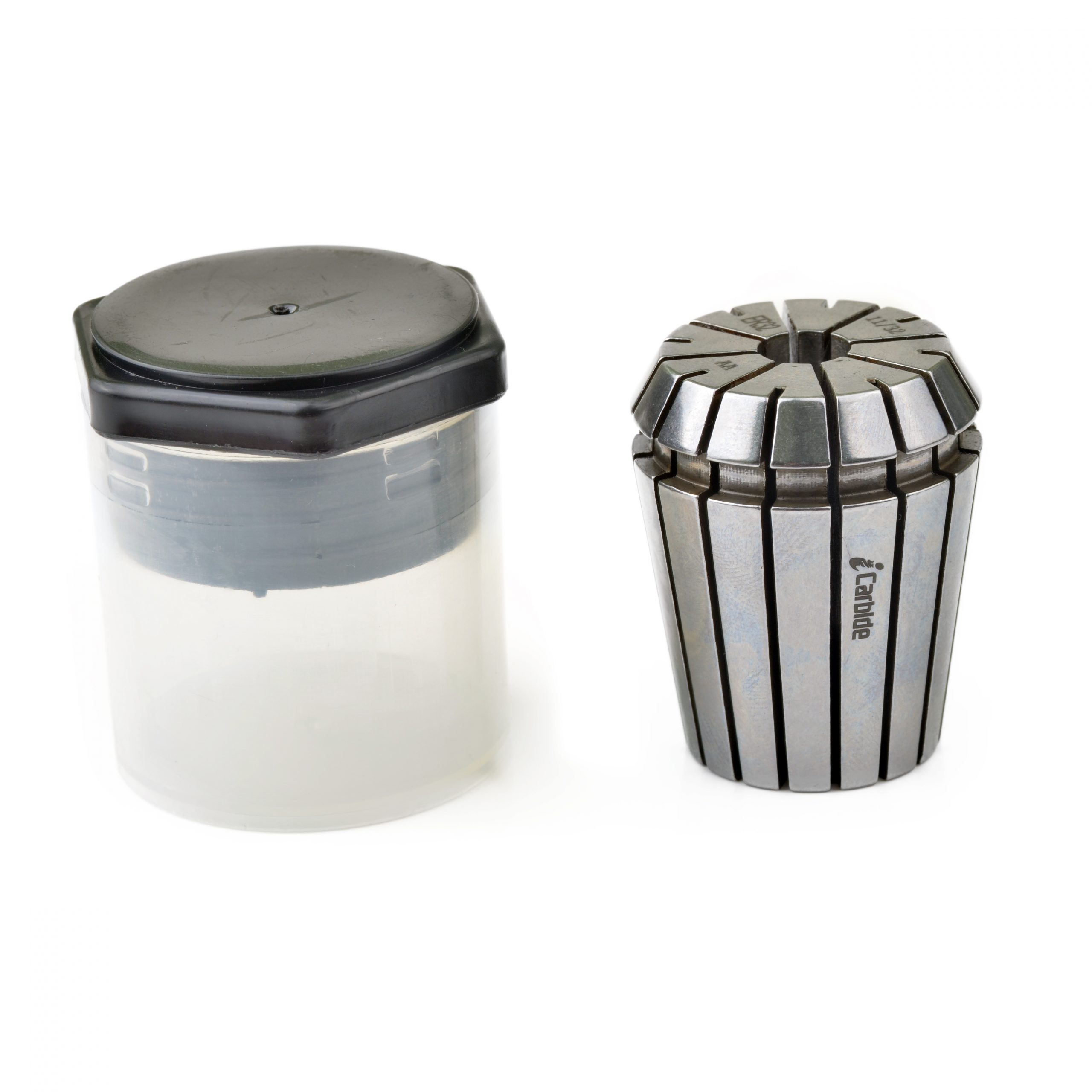

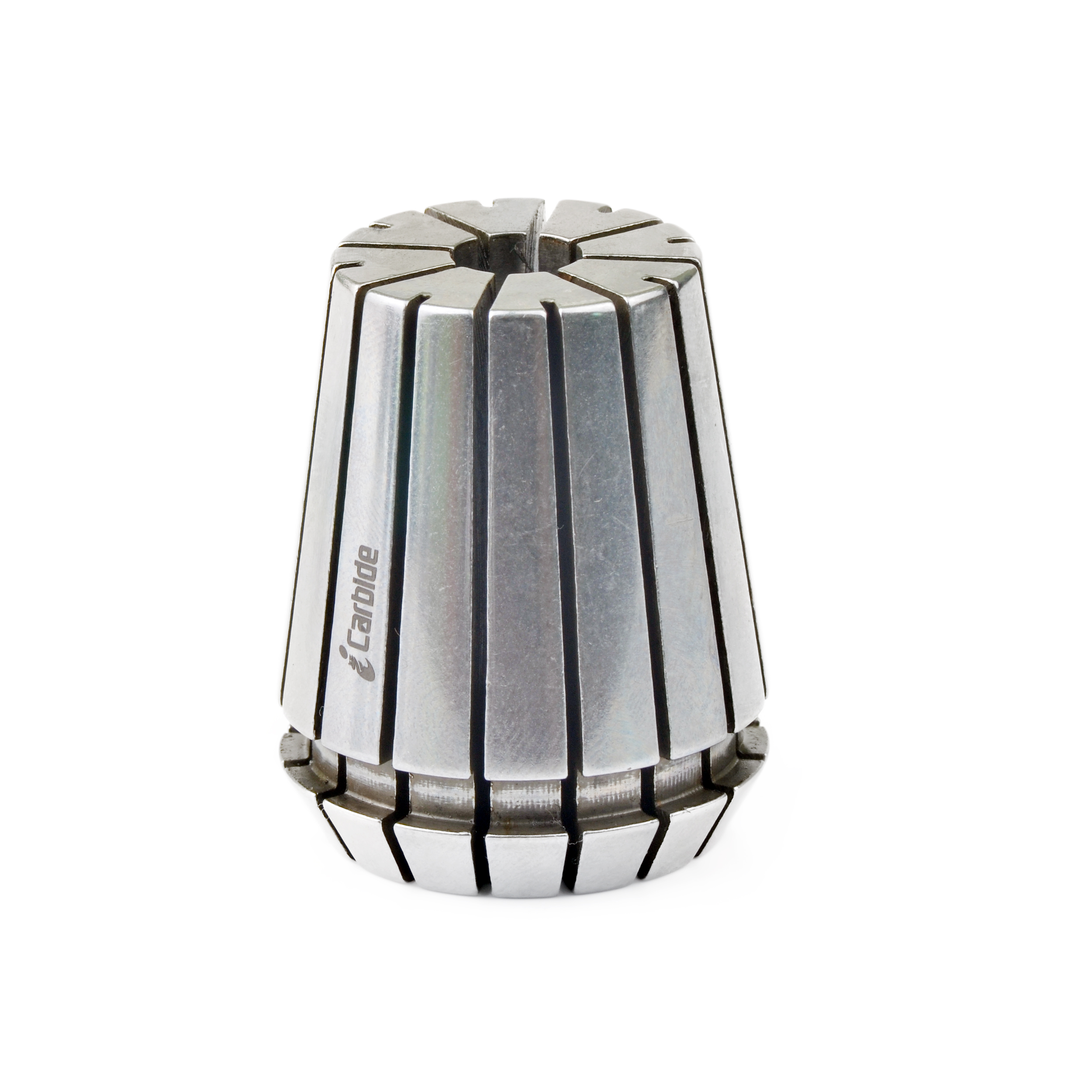

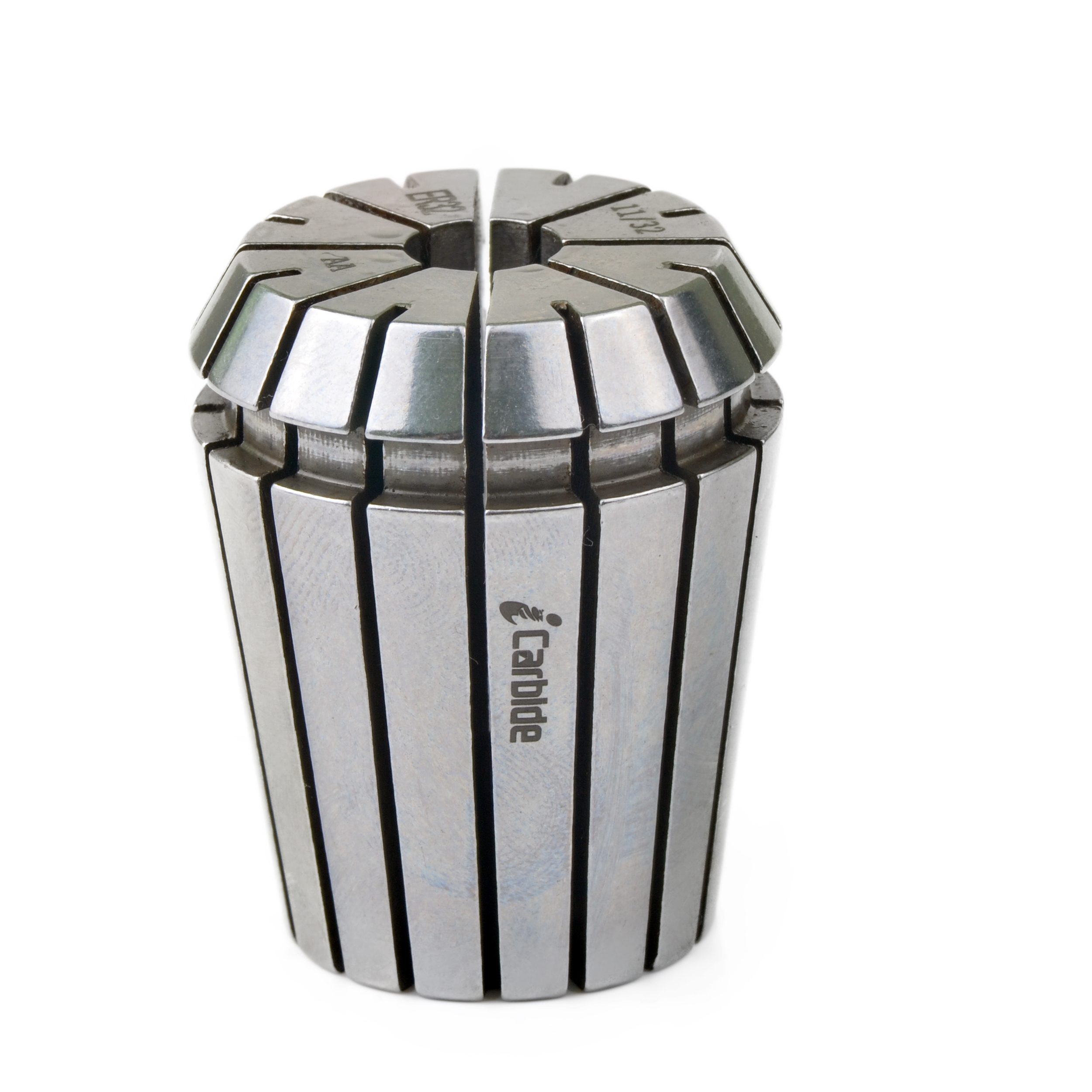

For all DIN6499 standard tool holder in ER32 Collets
Finishing & Rough Cutting:
High precision run out saving your cost-effective
Precision:
High Precision Runout: TIR 5μm or 0.0002
Hardened:
Outside: HRC48 Inside: HRC32

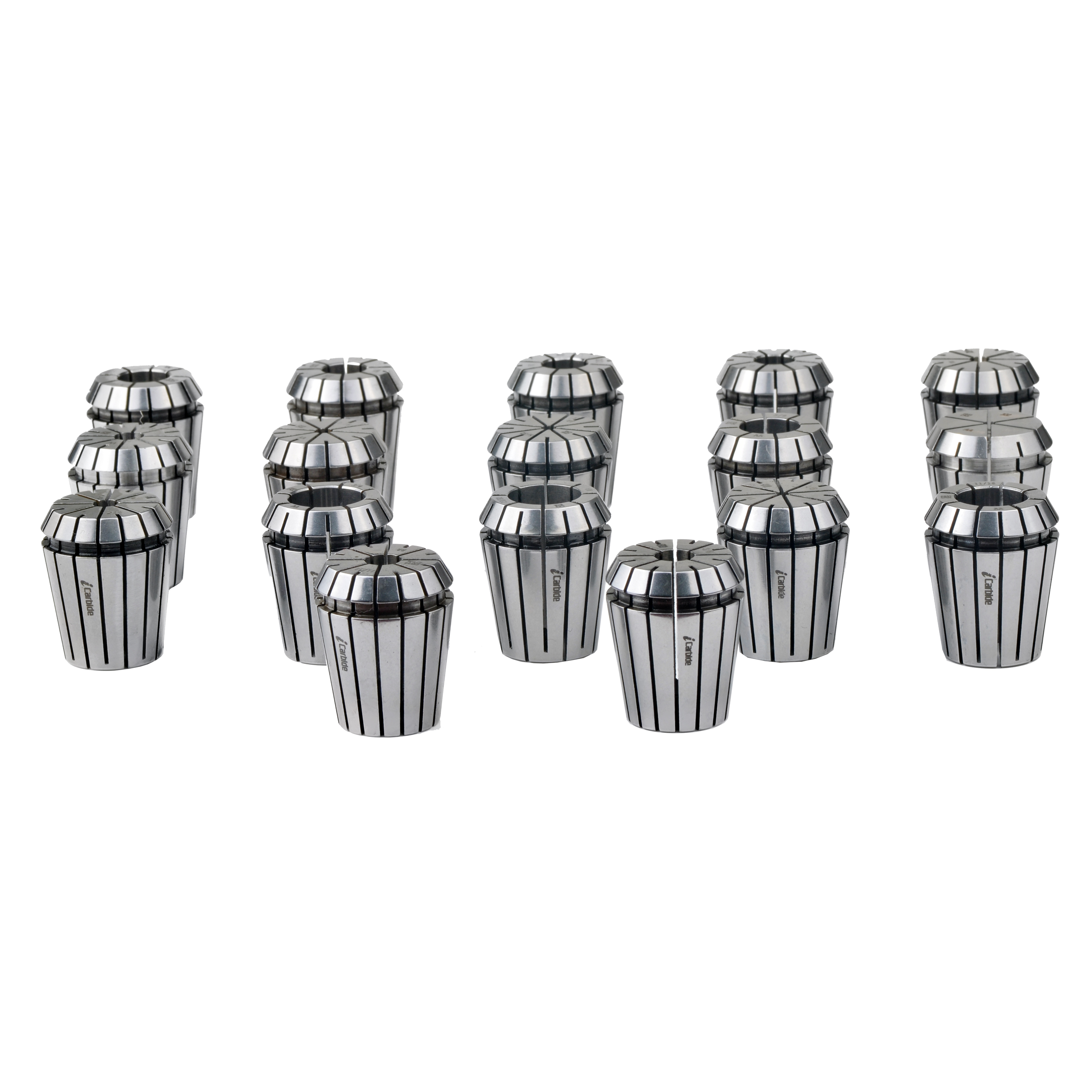

Size includes:
1/4,1/8,3/8,3/4,1/2,5/16,3/16,7/16,9/16,5/8,11/16,5/32,3/32,11/32,23/32,15/32,7/32
Drawings & Parameters Table
Select & buy our tool
| Order NO | D | L | Clamping Ф mm | Run Out | Slot | Price |
|---|---|---|---|---|---|---|
| ICER1101 | 11.5 | 18 | 1 | ≤ 10μm | 16 | 9.99 |
| ICER1102 | 11.5 | 18 | 1.5 | ≤ 10μm | 16 | 9.99 |
| ICER1103 | 11.5 | 18 | 2 | ≤ 10μm | 16 | 7.99 |
| ICER1104 | 11.5 | 18 | 2.5 | ≤ 5μm | 16 | 7.99 |
| ICER1105 | 11.5 | 18 | 3 | ≤ 5μm | 16 | 7.99 |
| ICER1106 | 11.5 | 18 | 3.5 | ≤ 5μm | 16 | 7.99 |
| ICER1107 | 11.5 | 18 | 4 | ≤ 5μm | 16 | 7.99 |
| ICER1108 | 11.5 | 18 | 4.5 | ≤ 5μm | 16 | 7.99 |
| ICER1109 | 11.5 | 18 | 5 | ≤ 5μm | 16 | 7.99 |
| ICER1110 | 11.5 | 18 | 5.5 | ≤ 5μm | 16 | 7.99 |
| ICER1111 | 11.5 | 18 | 6 | ≤ 5μm | 16 | 7.99 |
| ICER1112 | 11.5 | 18 | 6.5 | ≤ 5μm | 16 | 7.99 |
| ICER1113 | 11.5 | 18 | 7 | ≤ 5μm | 16 | 7.99 |
| ICER1601 | 17 | 27.5 | 1 | ≤ 10μm | 16 | 9.99 |
| ICER1602 | 17 | 27.5 | 2 | ≤ 5μm | 16 | 9.99 |
| ICER1603 | 17 | 27.5 | 3 | ≤ 5μm | 16 | 6.99 |
| ICER1604 | 17 | 27.5 | 4 | ≤ 5μm | 16 | 6.99 |
| ICER1605 | 17 | 27.5 | 5 | ≤ 5μm | 16 | 6.99 |
| ICER1606 | 17 | 27.5 | 6 | ≤ 5μm | 16 | 6.99 |
| ICER1607 | 17 | 27.5 | 7 | ≤ 5μm | 16 | 6.99 |
| ICER1608 | 17 | 27.5 | 8 | ≤ 5μm | 16 | 6.99 |
| ICER1609 | 17 | 27.5 | 9 | ≤ 5μm | 16 | 6.99 |
| ICER1610 | 17 | 27.5 | 10 | ≤ 5μm | 16 | 6.99 |
| ICER2001 | 21 | 31.5 | 1 | ≤ 10μm | 16 | 9.99 |
| ICER2002 | 21 | 31.5 | 2 | ≤ 10μm | 16 | 9.99 |
| ICER2003 | 21 | 31.5 | 3 | ≤ 5μm | 16 | 6.99 |
| ICER2004 | 21 | 31.5 | 4 | ≤ 5μm | 16 | 6.99 |
| ICER2005 | 21 | 31.5 | 5 | ≤ 5μm | 16 | 6.99 |
| ICER2006 | 21 | 31.5 | 6 | ≤ 5μm | 16 | 6.99 |
| ICER2007 | 21 | 31.5 | 7 | ≤ 5μm | 16 | 6.99 |
| ICER2008 | 21 | 31.5 | 8 | ≤ 5μm | 16 | 6.99 |
| ICER2009 | 21 | 31.5 | 9 | ≤ 5μm | 16 | 6.99 |
| ICER2010 | 21 | 31.5 | 10 | ≤ 5μm | 16 | 6.99 |
| ICER2011 | 21 | 31.5 | 11 | ≤ 5μm | 16 | 6.99 |
| ICER2012 | 21 | 31.5 | 12 | ≤ 5μm | 16 | 6.99 |
| ICER2013 | 21 | 31.5 | 13 | ≤ 5μm | 16 | 6.99 |
| ICER2501 | 26 | 34 | 1 | ≤ 5μm | 16 | 12.99 |
| ICER2502 | 26 | 34 | 2 | ≤ 5μm | 16 | 12.99 |
| ICER2503 | 26 | 34 | 3 | ≤ 5μm | 16 | 8.99 |
| ICER2504 | 26 | 34 | 4 | ≤ 5μm | 16 | 8.99 |
| ICER2505 | 26 | 34 | 5 | ≤ 5μm | 16 | 8.99 |
| ICER2506 | 26 | 34 | 6 | ≤ 5μm | 16 | 8.99 |
| ICER2507 | 26 | 34 | 7 | ≤ 5μm | 16 | 8.99 |
| ICER2508 | 26 | 34 | 8 | ≤ 5μm | 16 | 8.99 |
| ICER2509 | 26 | 34 | 9 | ≤ 5μm | 16 | 8.99 |
| ICER2510 | 26 | 34 | 10 | ≤ 5μm | 16 | 8.99 |
| ICER2511 | 26 | 34 | 11 | ≤ 5μm | 16 | 8.99 |
| ICER2512 | 26 | 34 | 12 | ≤ 5μm | 16 | 8.99 |
| ICER2513 | 26 | 34 | 13 | ≤ 5μm | 16 | 8.99 |
| ICER2514 | 26 | 34 | 14 | ≤ 5μm | 16 | 8.99 |
| ICER2515 | 26 | 34 | 15 | ≤ 5μm | 16 | 8.99 |
| ICER2516 | 26 | 34 | 16 | ≤ 5μm | 16 | 8.99 |
| ICER3201 | 33 | 40 | 2 | ≤ 5μm | 16 | 13.99 |
| ICER3202 | 33 | 40 | 3 | ≤ 5μm | 16 | 13.99 |
| ICER3203 | 33 | 40 | 4 | ≤ 5μm | 16 | 9.99 |
| ICER3204 | 33 | 40 | 5 | ≤ 5μm | 16 | 9.99 |
| ICER3205 | 33 | 40 | 6 | ≤ 5μm | 16 | 9.99 |
| ICER3206 | 33 | 40 | 7 | ≤ 5μm | 16 | 9.99 |
| ICER3207 | 33 | 40 | 8 | ≤ 5μm | 16 | 9.99 |
| ICER3208 | 33 | 40 | 9 | ≤ 5μm | 16 | 9.99 |
| ICER3209 | 33 | 40 | 10 | ≤ 5μm | 16 | 9.99 |
| ICER3210 | 33 | 40 | 11 | ≤ 5μm | 16 | 9.99 |
| ICER3211 | 33 | 40 | 12 | ≤ 5μm | 16 | 9.99 |
| ICER3212 | 33 | 40 | 13 | ≤ 5μm | 16 | 9.99 |
| ICER3213 | 33 | 40 | 14 | ≤ 5μm | 16 | 9.99 |
| ICER3214 | 33 | 40 | 15 | ≤ 5μm | 16 | 9.99 |
| ICER3215 | 33 | 40 | 16 | ≤ 5μm | 16 | 9.99 |
| ICER3216 | 33 | 40 | 17 | ≤ 5μm | 16 | 9.99 |
| ICER3217 | 33 | 40 | 18 | ≤ 5μm | 16 | 9.99 |
| ICER3218 | 33 | 40 | 19 | ≤ 5μm | 16 | 9.99 |
| ICER3219 | 33 | 40 | 20 | ≤ 5μm | 16 | 9.99 |
| ICER4001 | 41 | 46 | 3 | ≤ 5μm | 16 | 14.99 |
| ICER4002 | 41 | 46 | 4 | ≤ 5μm | 16 | 14.99 |
| ICER4003 | 41 | 46 | 5 | ≤ 5μm | 16 | 14.99 |
| ICER4004 | 41 | 46 | 6 | ≤ 5μm | 16 | 14.99 |
| ICER4005 | 41 | 46 | 7 | ≤ 5μm | 16 | 14.99 |
| ICER4006 | 41 | 46 | 8 | ≤ 5μm | 16 | 14.99 |
| ICER4007 | 41 | 46 | 9 | ≤ 5μm | 16 | 14.99 |
| ICER4008 | 41 | 46 | 10 | ≤ 5μm | 16 | 14.99 |
| ICER4009 | 41 | 46 | 11 | ≤ 5μm | 16 | 14.99 |
| ICER4010 | 41 | 46 | 12 | ≤ 5μm | 16 | 14.99 |
| ICER4011 | 41 | 46 | 13 | ≤ 5μm | 16 | 14.99 |
| ICER4012 | 41 | 46 | 14 | ≤ 5μm | 16 | 14.99 |
| ICER4013 | 41 | 46 | 15 | ≤ 5μm | 16 | 14.99 |
| ICER4014 | 41 | 46 | 16 | ≤ 5μm | 16 | 14.99 |
| ICER4015 | 41 | 46 | 17 | ≤ 5μm | 16 | 14.99 |
| ICER4016 | 41 | 46 | 18 | ≤ 5μm | 16 | 14.99 |
| ICER4017 | 41 | 46 | 19 | ≤ 5μm | 16 | 14.99 |
| ICER4018 | 41 | 46 | 20 | ≤ 5μm | 16 | 14.99 |
| ICER4019 | 41 | 46 | 21 | ≤ 5μm | 16 | 14.99 |
| ICER4020 | 41 | 46 | 22 | ≤ 5μm | 16 | 14.99 |
| ICER4021 | 41 | 46 | 23 | ≤ 5μm | 16 | 14.99 |
| ICER4022 | 41 | 46 | 24 | ≤ 5μm | 16 | 14.99 |
| ICER4023 | 41 | 46 | 25 | ≤ 5μm | 16 | 14.99 |
| ICER4024 | 41 | 46 | 26 | ≤ 5μm | 16 | 14.99 |
Material Application
Japanese JIS standard SUJ2 high carbon chromium bearing steel, corresponding to the national standard GCr15, SUJ2 high carbon chromium bearing steel, can be fully hardened, the hardness can reach HRC58-61, has the wear resistance of the bearing, also strengthens the rigidity, workability Good, and can be directly processed and shaped, using mold times 2-3 times higher than SKD-61 (HRC52) full hardware. During quenching and tempering, the size does not change much, and fatigue resistance is quite good.
