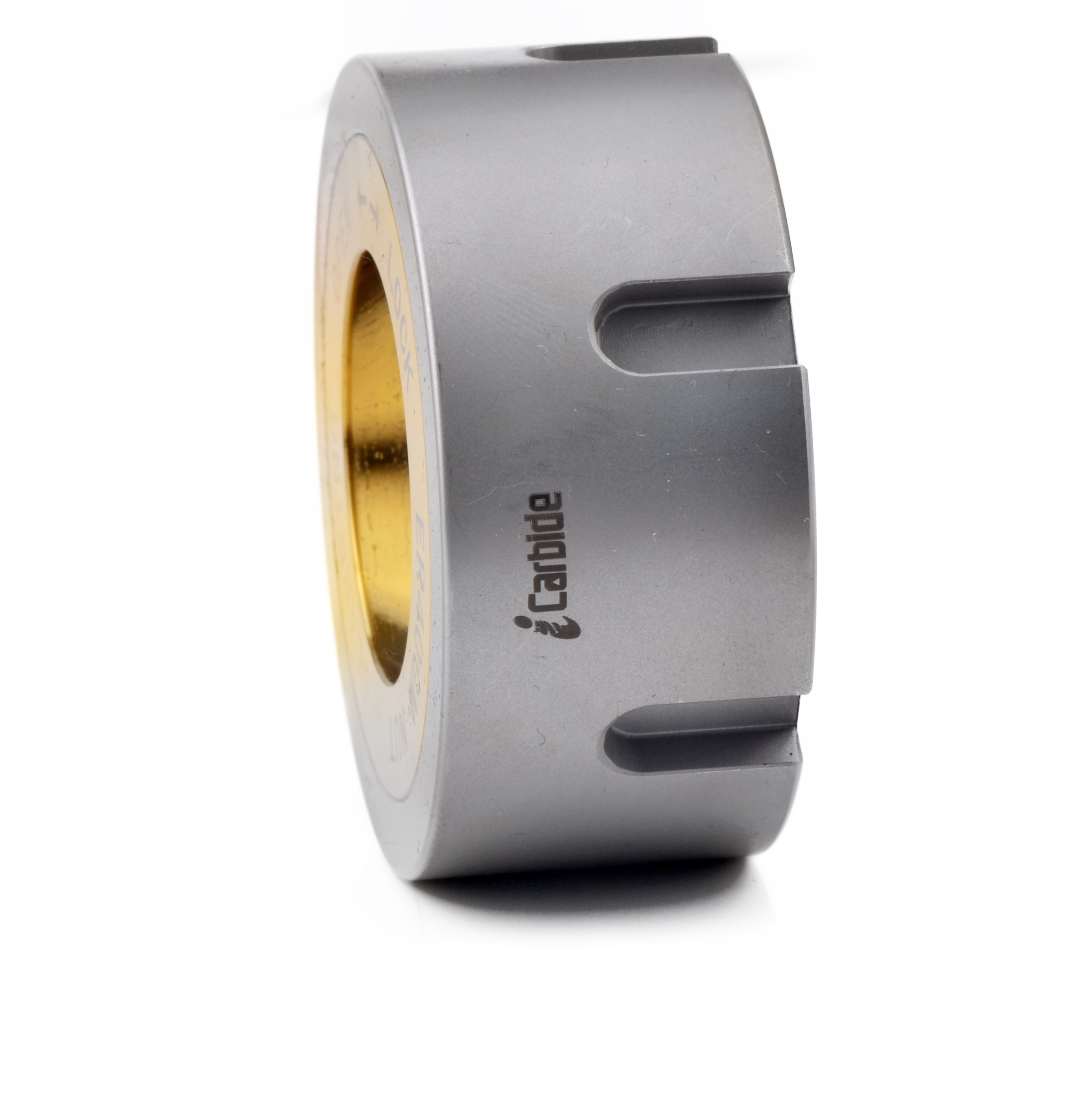

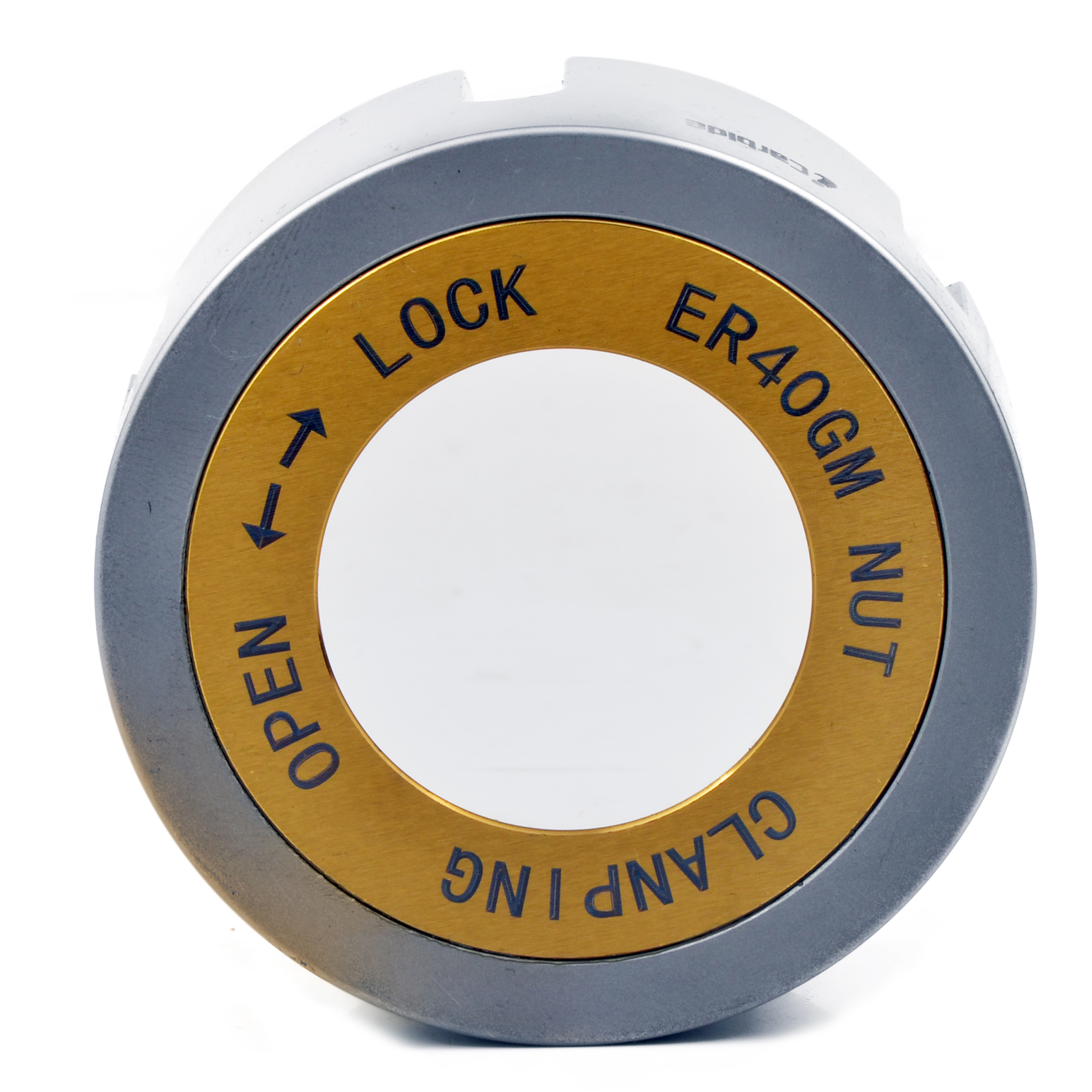

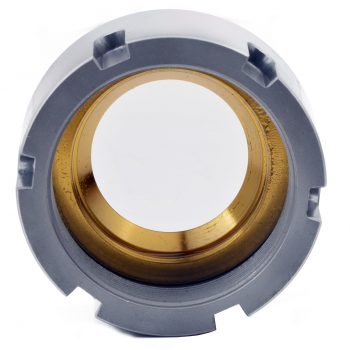

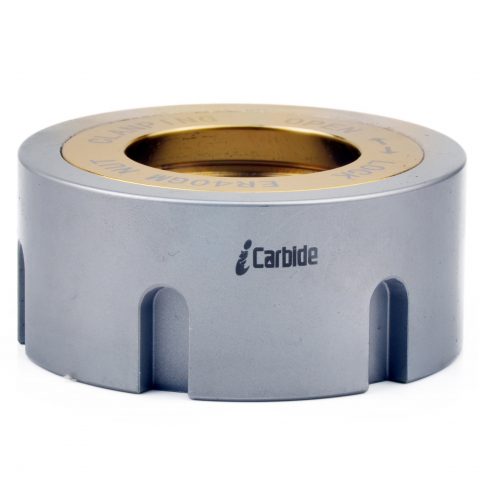

ER40 Ball Bearing Collet Nut
| BALL BEARING COLLET NUT | ER40 | COLLET THREAD | M50X1.5 |
| WRENCH TYPE | UM SLOT | DIAMETER | 63 |
| COLOR | NICKEL PLATE | THICKNESS | 26 |
| BEARING | MADE IN JAPAN | BRAND | ICARIDE USA |
The tool holder collet nut for all DIN6499 standard tool holder in ER40 Collets
Finishing & Rough Cutting: High precision run out saving your cost-effective
Precision: CNC turning thread after heat treatment and the inner cone and the threaded hole is processed at one time.
Made in Alloy Steel, Hardened: HRC55
Ball Bearing Made in Japan and Collet Nut balance to G2.5 25000rpm
Tool Holder Collet Nut
For all ER40 Collets
Quality
100% quality control, We checked er collet one by one , Er collet >hardness >size>material >run out >lable >packing.
We have cnc collet size include er8,er11,er16,er20,er25 ,er32 ,er40 and er50 mill collet. we would also provide er collet sets available.
Another collet available in R8 collet, OZ Collets, straight collets, milling collets,sk10 collet,sk16 collet, SLC collets, and TG collets.
We accept OEM order.
Material Application
Japanese JIS standard SUJ2 high carbon chromium bearing steel, corresponding to the national standard GCr15, SUJ2 high carbon chromium bearing steel, can be fully hardened, the hardness can reach HRC58-61, has the wear resistance of the bearing, also strengthens the rigidity, workability Good, and can be directly processed and shaped, using mold times 2-3 times higher than SKD-61 (HRC52) full hardware. During quenching and tempering, the size does not change much, and fatigue resistance is quite good.
