OVERVIEW
Product Information
| Type | Shrink Fit |
| Taper | All types of shrink fit tool holders |
| Country of Origin |
China |

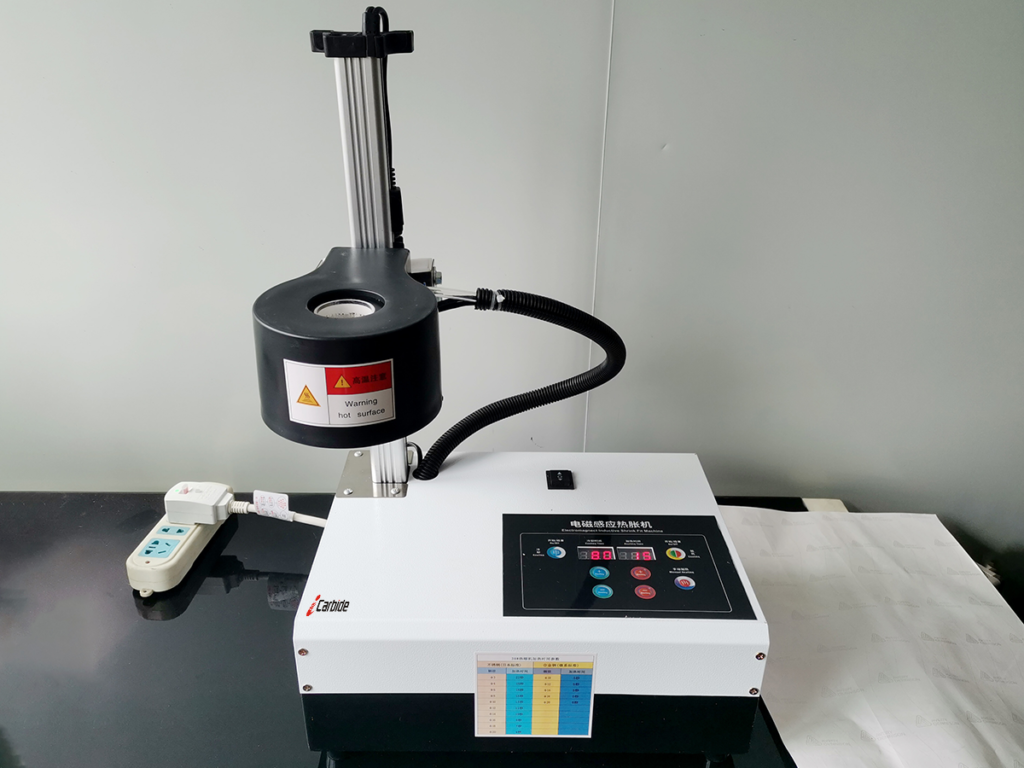

The iCarbide Bench Top Shrink Fit Machine Includes:
- Shrink Fit Machine
- Power input cable
Product Features
- There is no limit on taper size. Does not need to be inserted into the slot.
- Accommodates any taper size shrink fit toolholder.
- Mount your cutting tools with ease. Quickly heat your shrink fit holder.
TECHNICAL SPECIFICATIONS
| TECHNICAL PARAMETERS | SPECIFICATIONS |
|---|---|
| Rated Power | 2800W |
| Rated Voltage | AC 220V |
| Rated Frequency | 50Hz0.07MPA |
| Waterproof Level | IPX4 |
| Output Frequency | 36KHz |
| Gas Pressure Range | 0.07MPA |
| Trachea Diameter | 8mm |
| Heatable Materials | Alloy steel, Stainless steel |
| Sintering Range | D32-D45 |
| Applicable Ambient Temperature | -10℃-50℃ |
Machine Show
01 Place the tool holder on the workbench.

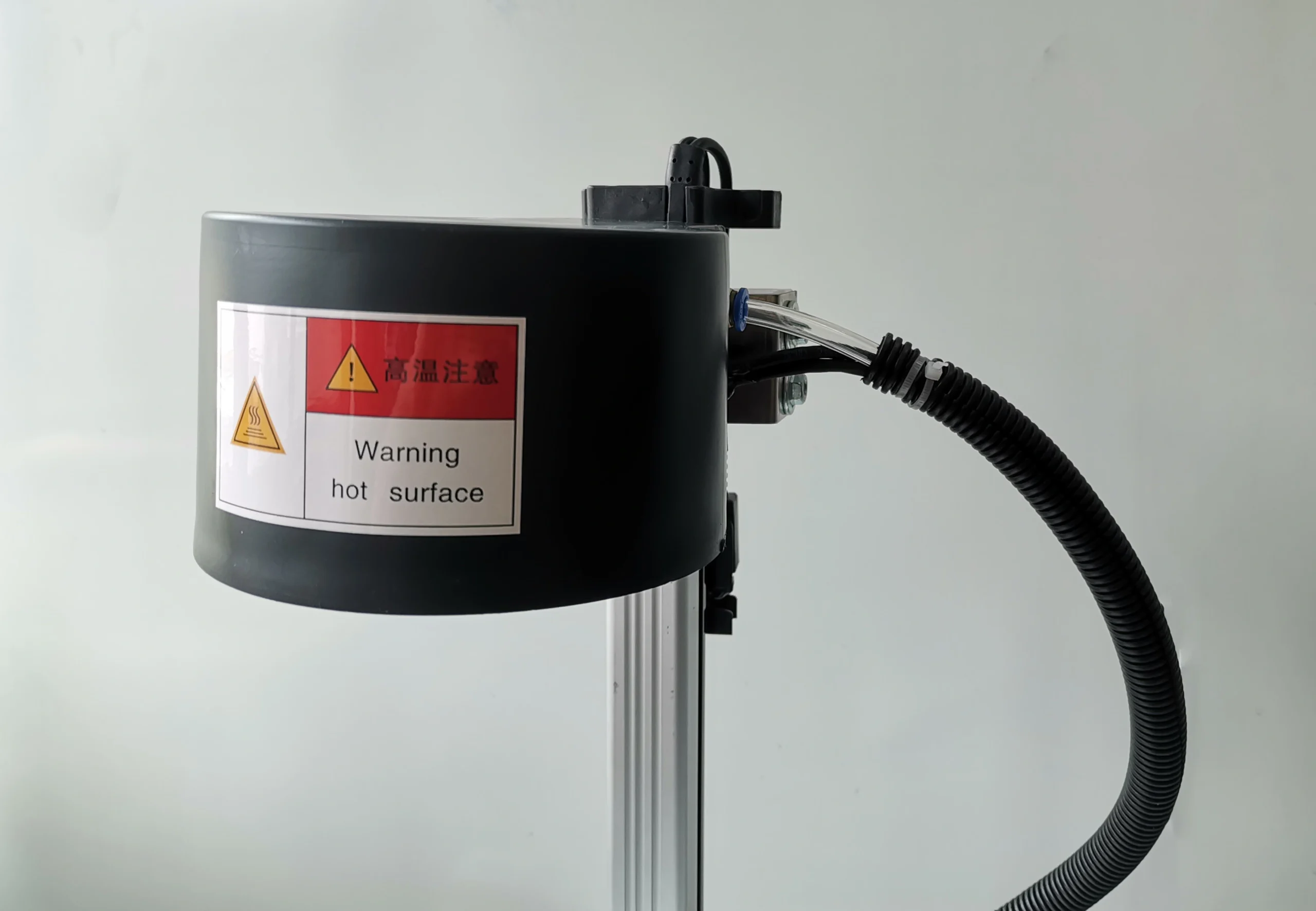

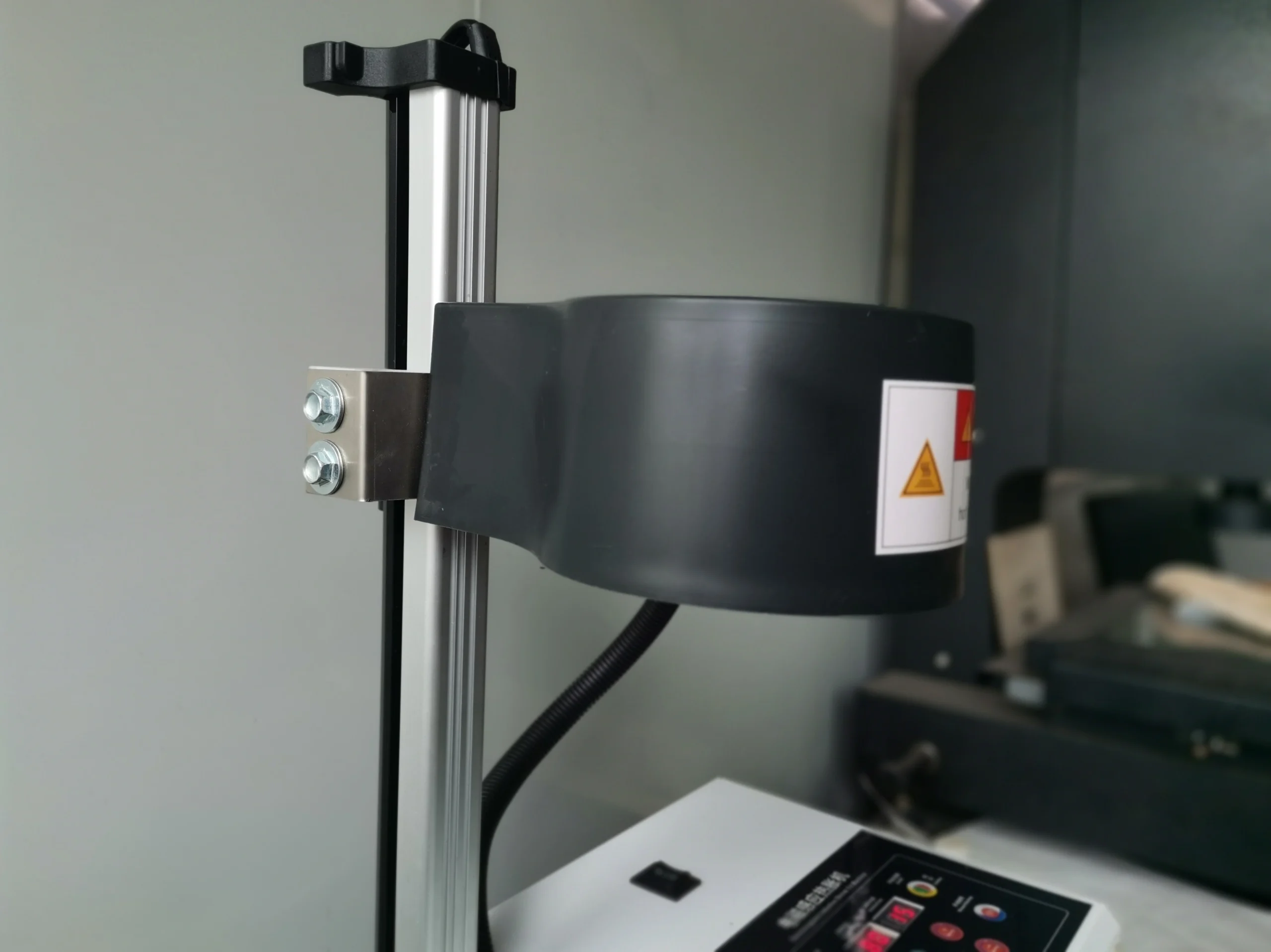

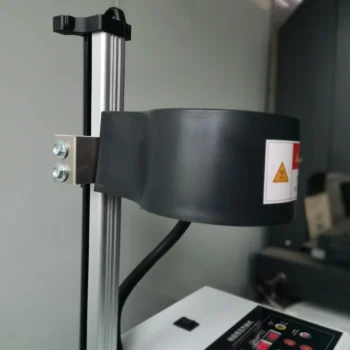

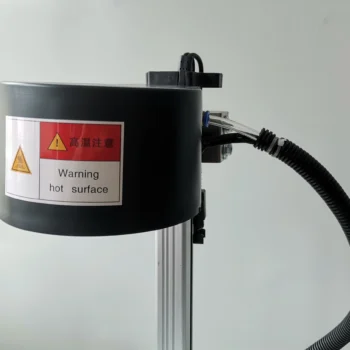

02 Adjust distance of induction heating head.

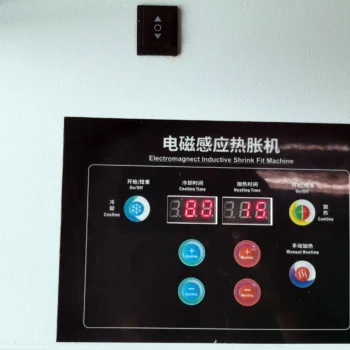

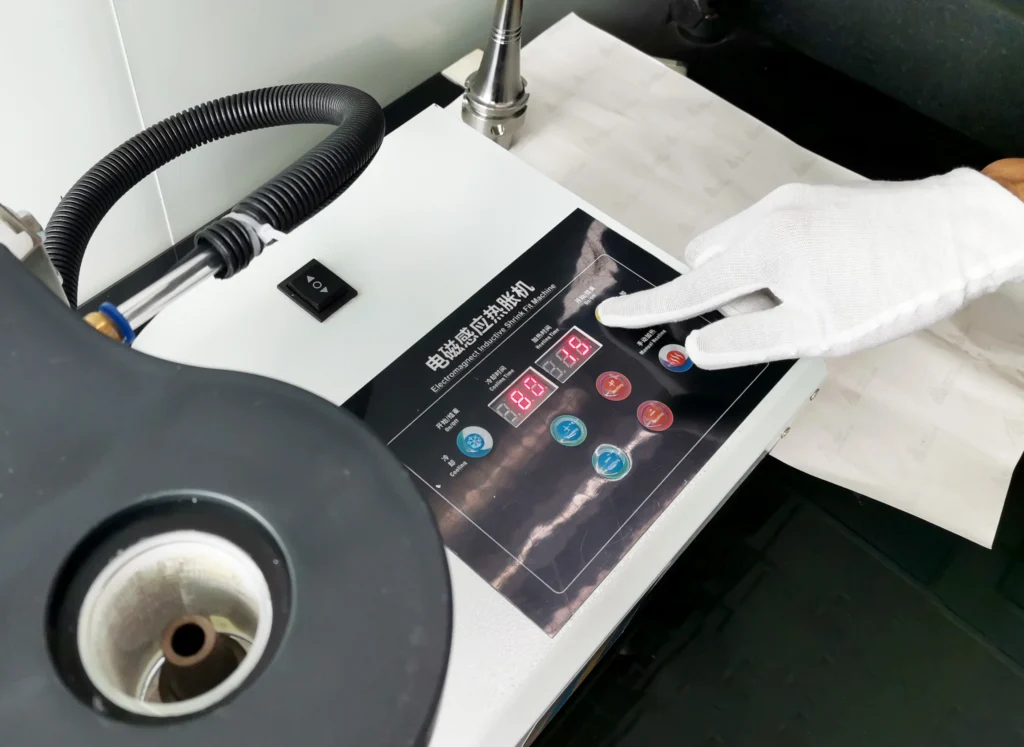

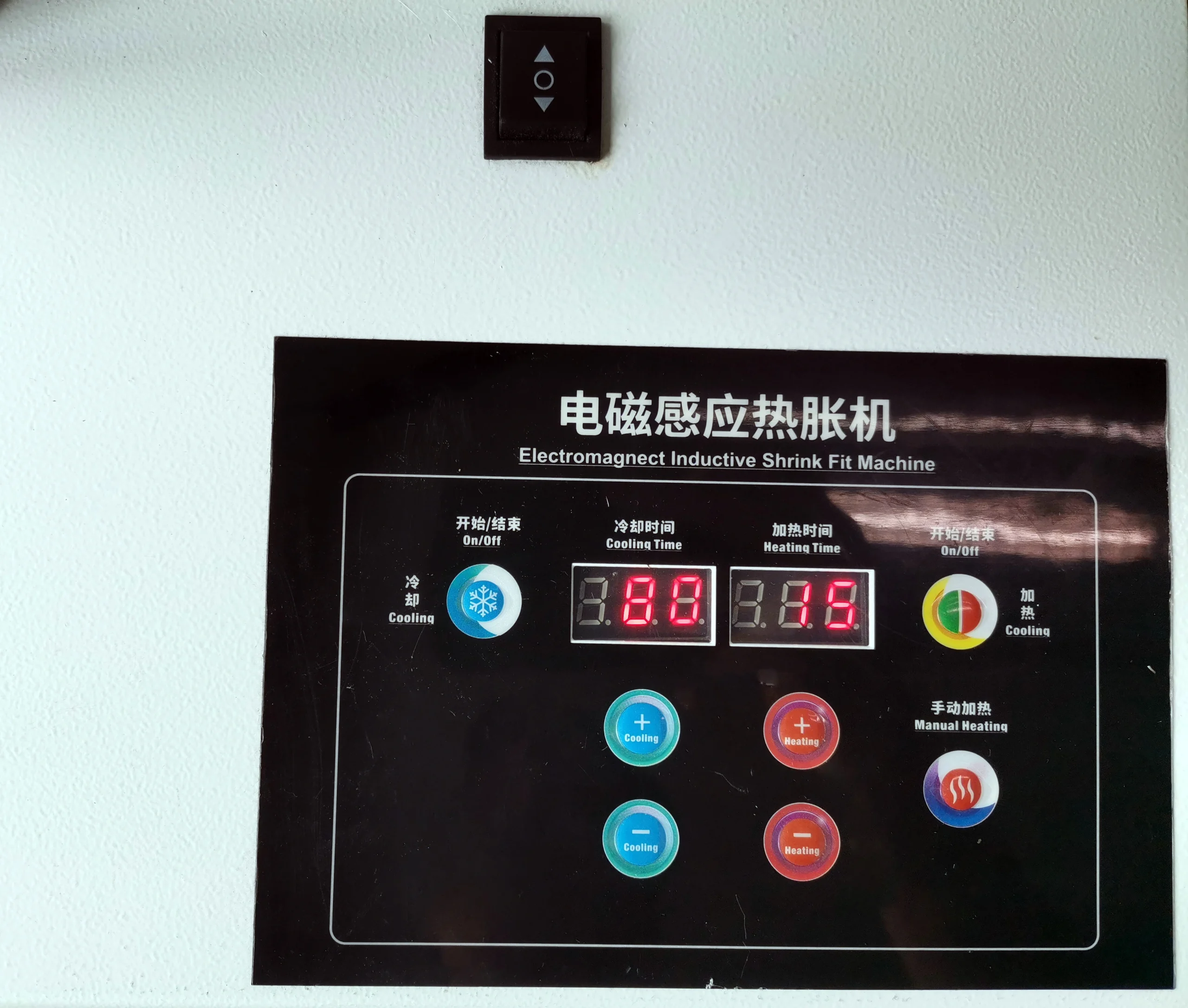

03 Press the start button.

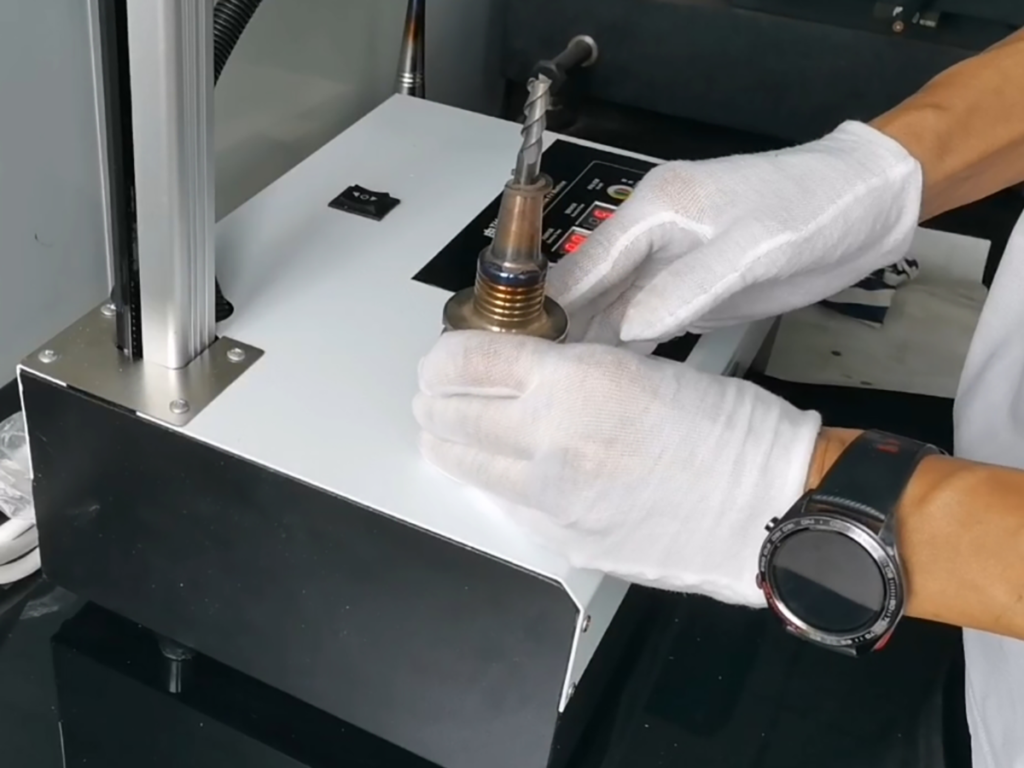

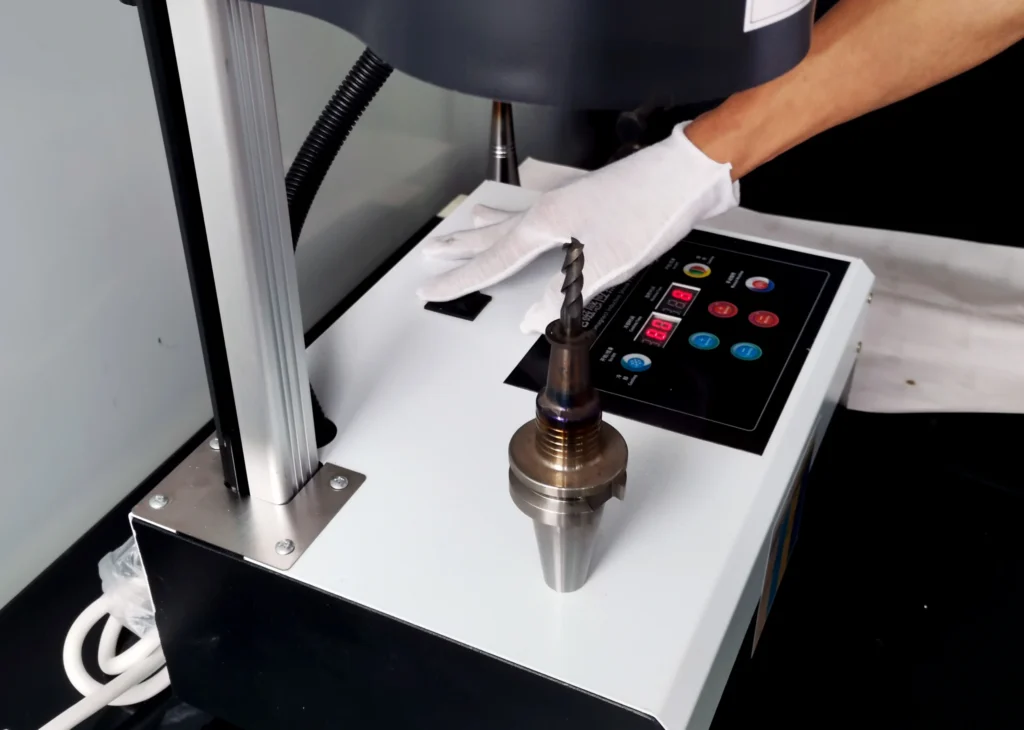

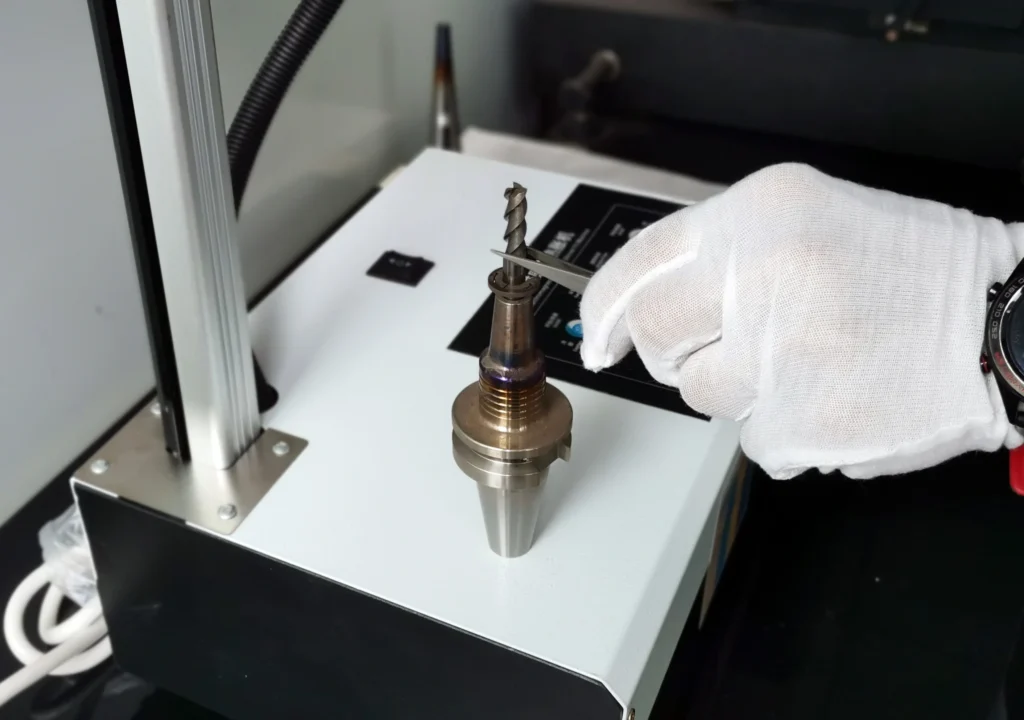

04 Installing or removing cutting tools.
iCarbide Heat Shrink Machine Instructions
Cutting tools in shrink-fit tool holders can be changed quickly, easily and safely. Place your tool holder on the workbench and select the tool you want to put into the suitable heat-fit tool holder. After heating, you can easily install or remove your tool.
To learn more, please watch our video guide.
