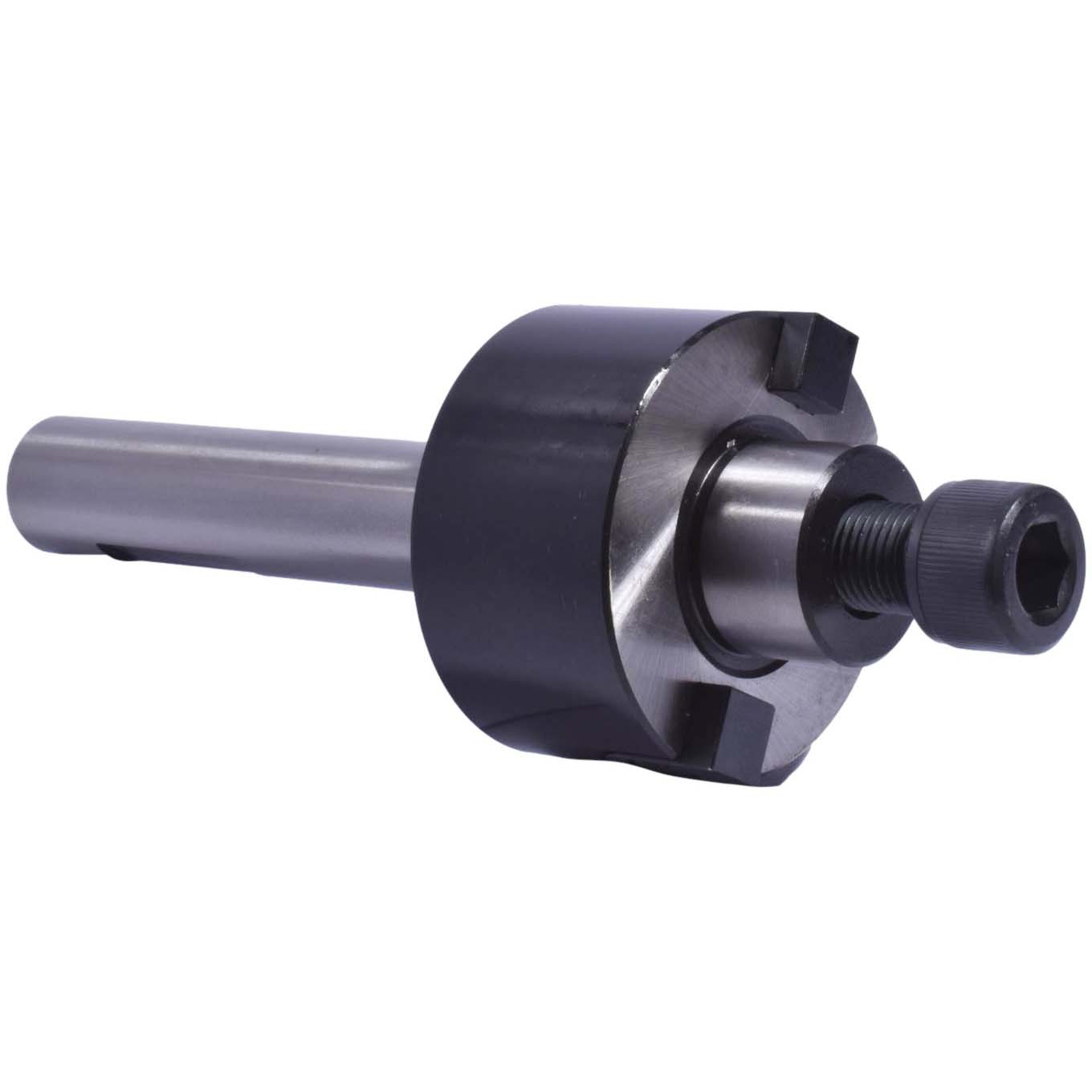

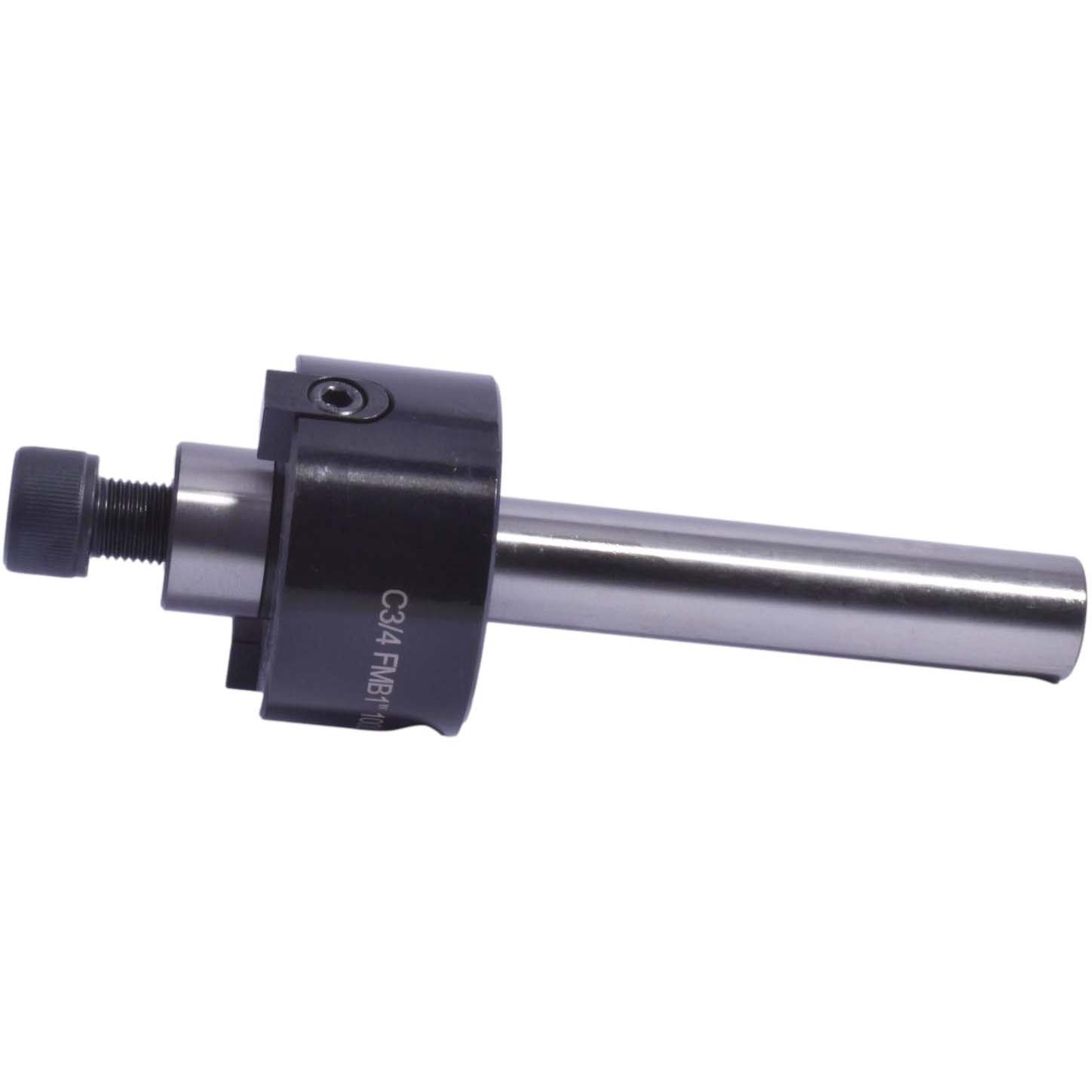

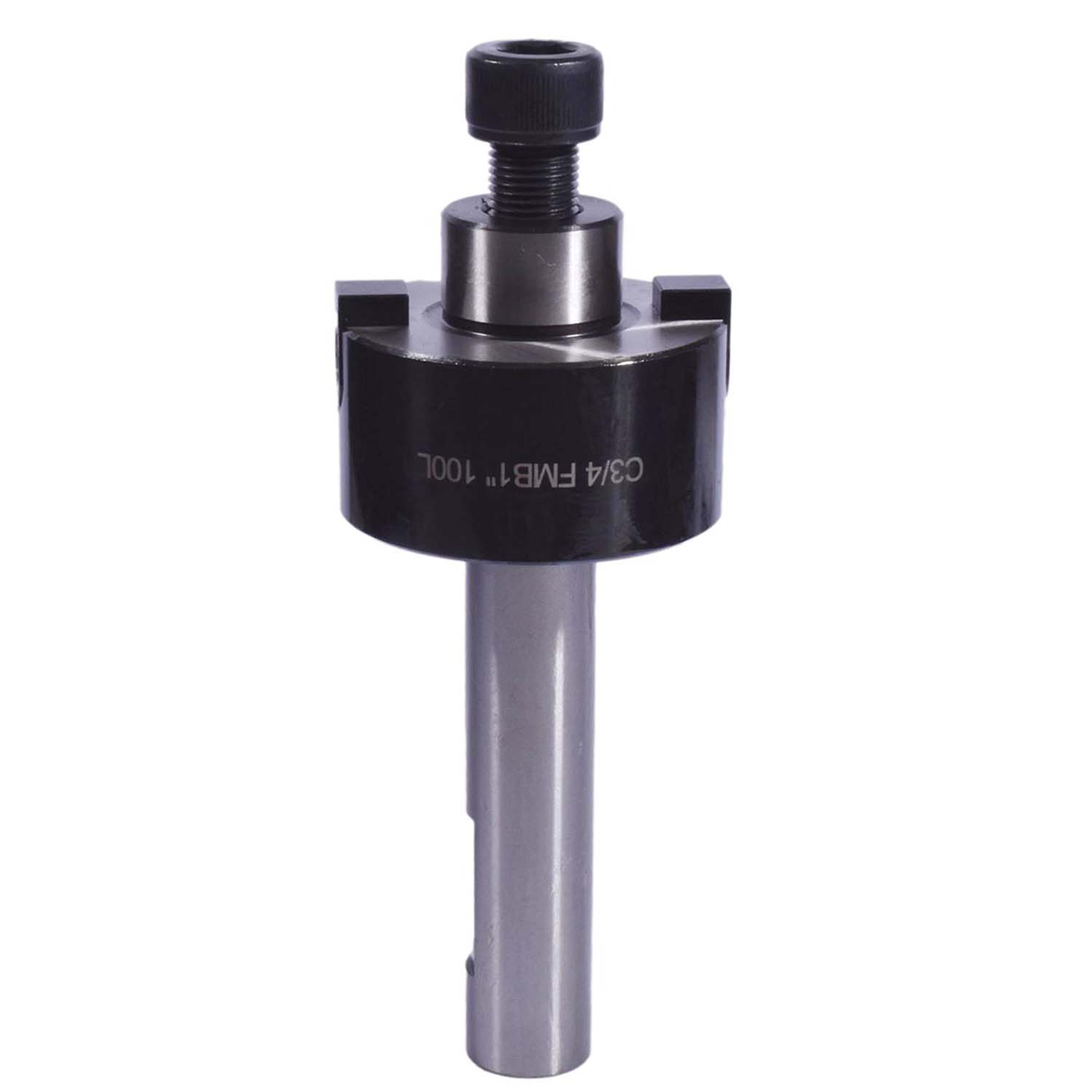

SHANK D 3/4″ BORE 1.0 ” SHELL MILL TOOL HOLDER FACE MILL ARBOR
| MODEL | FACE SHELL MILL | RUN OUT (TIR) | 0.0002″ |
| SHANK DIAMETER | 3/4″ | ARBOR DIAMETER | 1.0″ |
| SHANK LENGTH | 4.0″ | DRAWBAR THREAD | NO |
RELATED MT COLLET CHUCK
| MODEL | THREAD | COLLET NUT | COLLETS | ORDER NO |
| MT1 ER8 | M6 | ER8 | ER8 | MTER8 |
| MT1 ER11 | M6 | ER11 HEX | ER11 | MT1ER11 |
| MT1 ER16 | M6 | ER16 HEX | ER16 | MT1ER16 |
| MT1 ER20 | M6 | ER20 HEX | ER20 | MT1ER20 |
| MT2 ER11 | M10 / 3/8 | ER11 HEX | ER11 | M2ER11 |
| MT2 ER16 | M10 / 3/8 | ER16 HEX | ER16 | MT2ER16 |
| MT2 ER20 | M10 / 3/8 | ER20 HEX | ER20 | MT2ER20 |
| MT2 ER25 | M10 / 3/8 | ER25 UM | ER25 | MT2ER25 |
| MT2 ER32 | M10 / 3/8 | ER32 UM | ER32 | MT2ER32 |
| MT2 ER40 | M10 / 3/8 | ER40 UM | ER40 | MT2ER40 |
| MT3 ER16 | M12 / 1/2 | ER16 HEX | ER16 | MT3ER16 |
| MT3 ER20 | M12 / 1/2 | ER20 HEX | ER20 | MT3ER20 |
| MT3 ER25 | M12 /1/2 | ER25 UM | ER25 | MT3ER25 |
| MT3 ER32 | M12 / 1/2 | ER32 UM | ER32 | MT3ER32 |
| MT3 ER40 | M12 / 1/2 | ER40 UM | ER40 | MT3ER40 |
| MT4 ER25 | M16 / 5/8 | ER25 UM | ER25 | MT4E525 |
| MT4 ER32 | M16 / 5/8 | ER32 UM | ER32 | MT4ER32 |
| MT4 ER40 | M16 / 5/8 | ER40 UM | ER40 | MT4ER40 |
| MT4 ER50 | M16 / 5/8 | ER50 UM | ER50 | MT4ER50 |
| MT5 ER40 | M25 / 1-8″ | ER40 UM | ER40 | MT5ER40 |
| MT5 ER50 | M25 / 1-8″ | ER50 UM | ER50 | MT5ER50 |
RELATED R8 COLLET CHUCK
| MODEL | THREAD | GAGE LENGTH | CLAMPING TYPE | COLLET NUT TYPE | ORDER NO |
| R8 ER11 | 7/16-20 | 1.3″ | ER11 | HEX. | R8ER11IN |
| R8 ER16 | 7/16-20 | 1.5″ | ER16 | HEX | R8ER16IN |
| R8 ER16 | M12 | 1.4″ | ER16 | HEX | R8ER16M |
| R8 ER20 | 7/16-20 | 1.5″ | ER20 | HEX | R8ER20IN |
| R8 ER20 | M12 | 1.5″ | ER20 | HEX | R8ER20M |
| R8 ER25 | 7/16-20 | 1.5″ | ER25 | UM | R8ER25IN |
| R8 ER25 | M12 | 1.5″ | ER25 | UM | R8ER25M |
| R8 ER32 | 7/16-20 | 2″ | ER32 | UM | R8ER32IN |
| R8 ER32 | M12 | 2″ | ER32 | UM | R8ER32M |
| R8 ER40 | 7/16-20 | 2.2″ | ER40 | UM | R8ER40IN |
| R8 ER40 | M12 | 2.2″ | ER40 | UM | R8ER40M |
